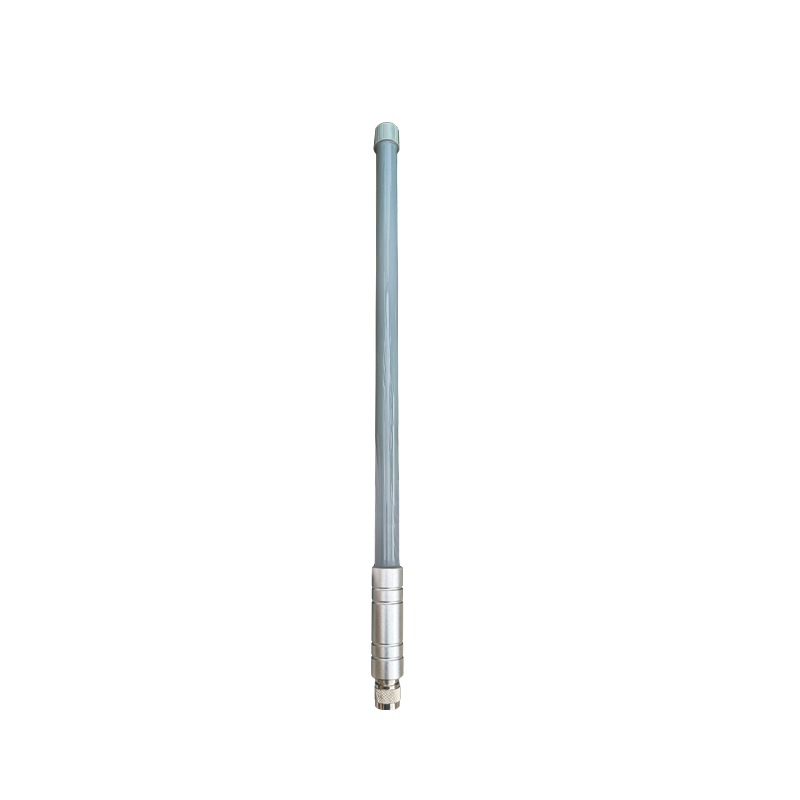

Omni-directional antennas are the right choice for situations where you need to be in contact with sources that are in two directions or if you do not know what direction the signals will be coming from.
They may be mounted right side up or tipped upside down depending upon the desired pattern.
They also feature a very versatile clamp mounting system that will fit most every situation you will encounter.
The antenna can be customized with cable or N female connector directly

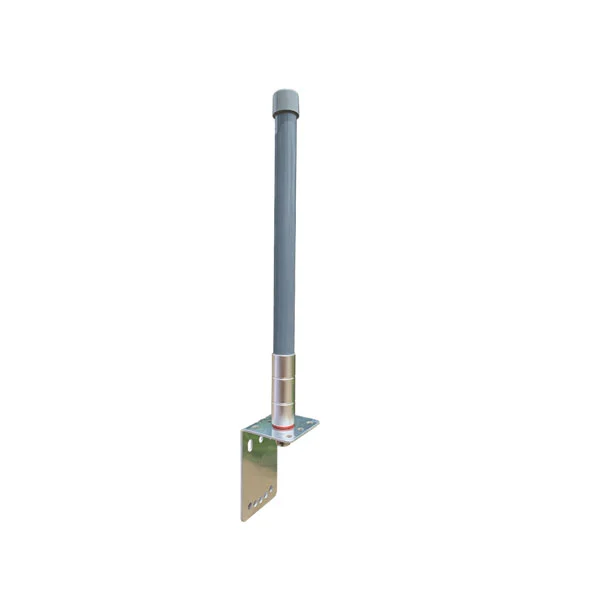

Instead of being fixed to the mast in the traditional way, it is fixed to where you want it by means of an L type bracket, increasing the flexibility of installation.
| Electrical | |
| Frequency Range | 433MHz |
| Gain | 3dBi |
| Horizontal Beam width | 360° |
| Vertical Beam width | 22° |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mounting Way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ20x320mm |
| Weight | 224g |
| Operating Temperature | -40℃ to+80℃ |
| Rated wind velocity(m/s) | 60m/s |
| RoHS Compliant | YES |
Antennas feature a superior VSWR performances of 1.5:1 maximum.
It is fixed by an L type bracket to increasing the flexibility of installation.
The typical application include general mobile radio service where high gain and wide coverage is desired.
