This antenna operating in 433 MHz frequency range. Designed to be a surface wall mount antenna that performs well on metallic surfaces, Small enough to be used indoors and outdoors, the antenna performance has been designed to take advantage of any metal plate (ground-plane) it attaches to deliver best of class performance.
| Electrical | |
| Frequency Range | 433MHz |
| Band width | ±3MHz |
| Gain | 3.5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG58U |
| Cable Length | 3M |
| Antenna Radome Material | Steel |
| Mounting way | Wall Mount |
| Mechanical | |
| Dimensions | Φ38x210mm |
| Weight | 120g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |

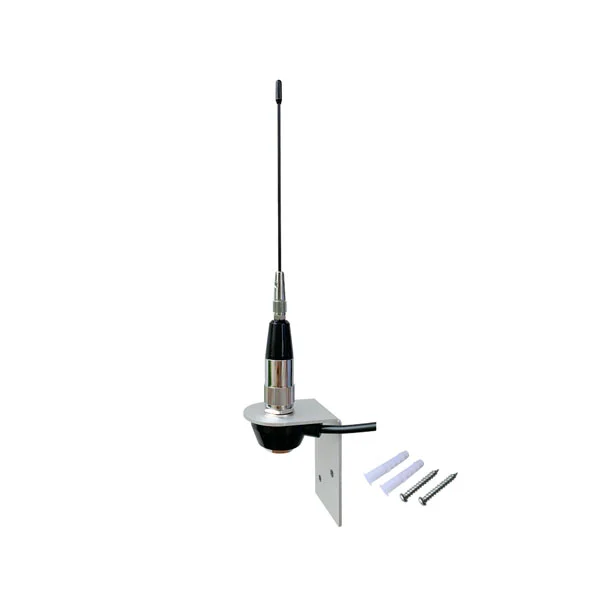

Antenna with a 3.5 dBi Omni antenna for 433 MHz, 3 m long SMA cable, and mechanical holder for quick and easy mast attachment.
The new kit offers significantly higher durability in a smaller package – without sacrificing performance.
The improved cable durability and the added IP66 water resistance with protection against powerful jets make this kit an excellent choice for all kinds of marine and coastal projects.
