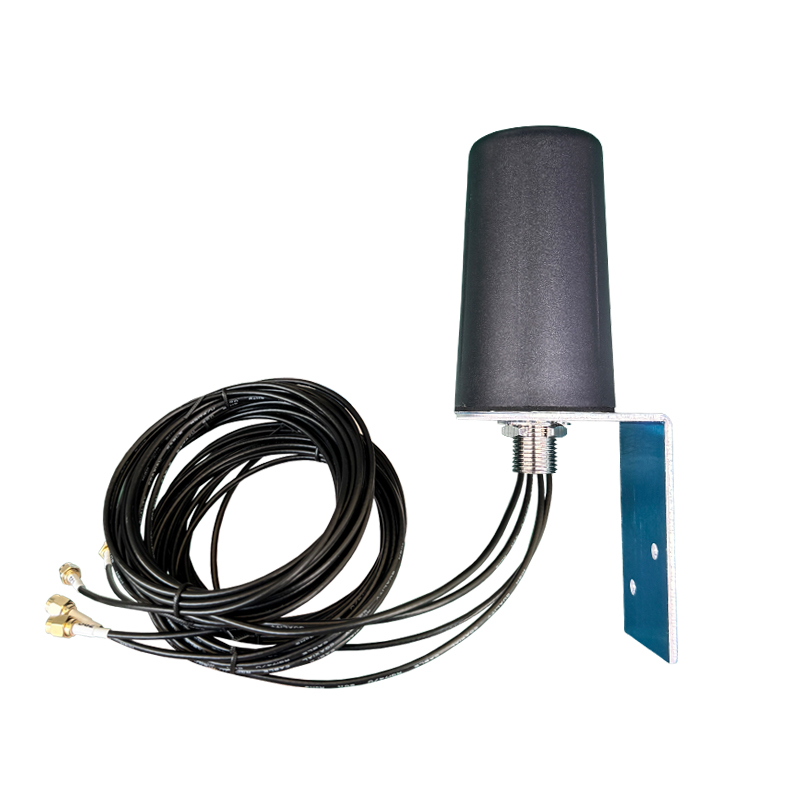

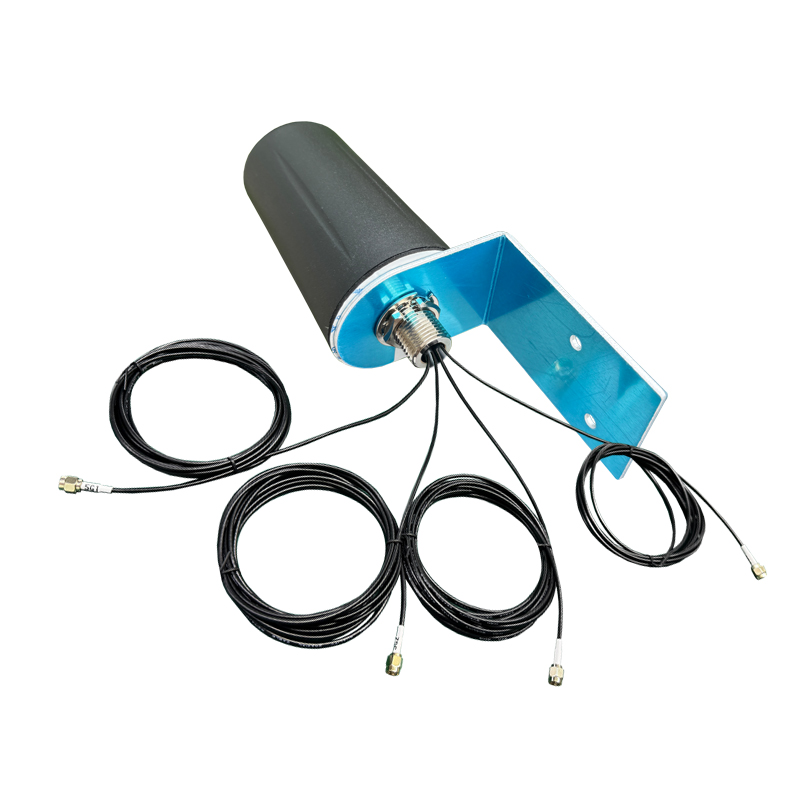

The 4 in 1 antenna is a cost effective omni-directional broad band antenna range for 5G/4G/3G/2G devices.Four ports covers 698-960/1710-6000MHz and is suitable for external or internal installation.

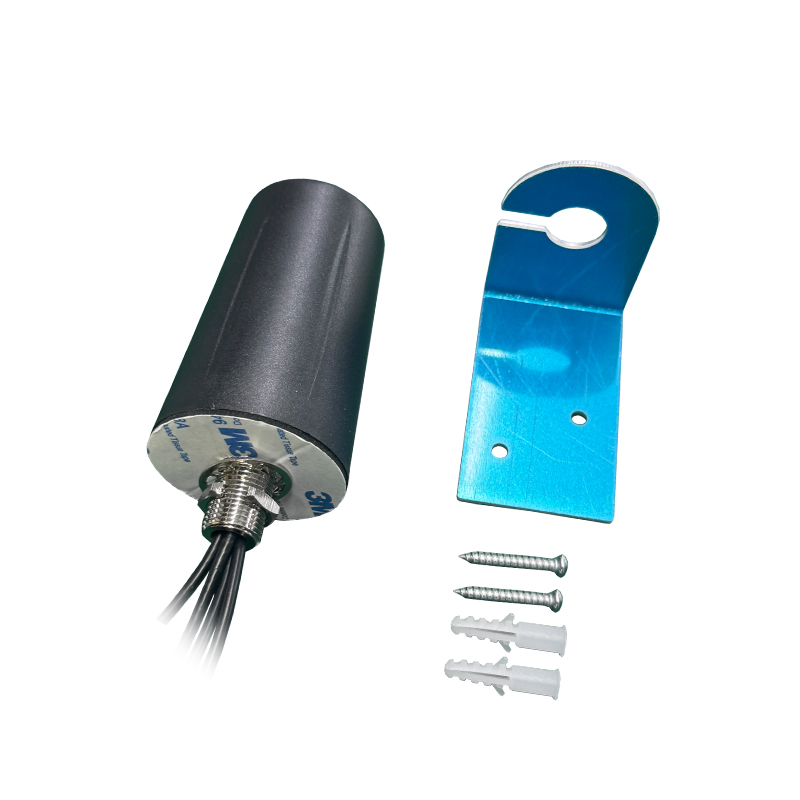

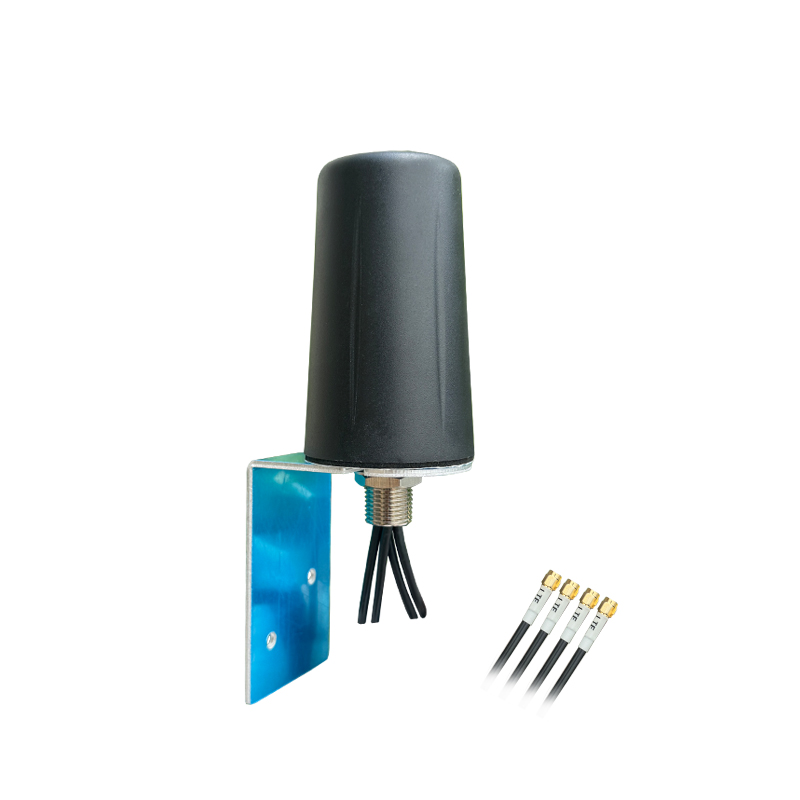

The mounting bracket enables simple wall/panel mounting using the supplied screws & wall plugs or mast mounting using a pipe clip.The omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment.
This antenna is supplied with an integral ultra-low loss RG174 or LMR100 coaxial cable,of various lengths, fitted SMA plug.Other connectors are available.
This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.
| Electrical | |
| Frequency Range | 4x698-960/1710-6000MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | 4xSMA Male |
| Cable Type | LMR100 |
| Cable Length | 3M |
| Antenna Radome Material | ABS |
| Mounting way | Wall Mount |
| Mechanical | |
| Dimensions | Φ48x82mm |
| Weight | 277g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
