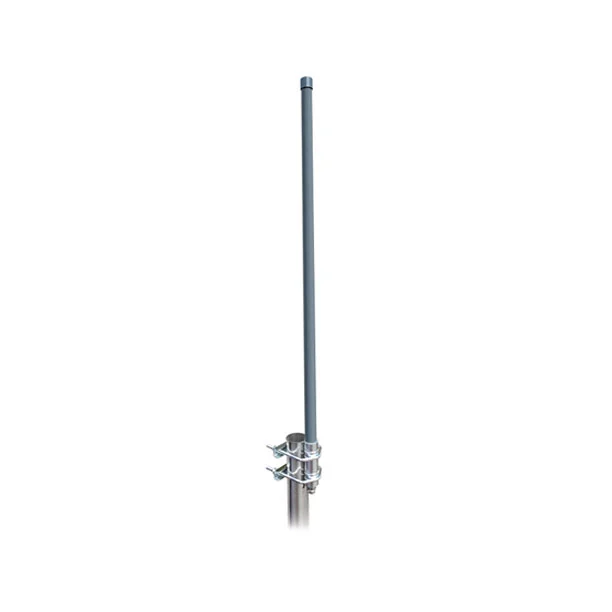

Omni-directional antennas are the right choice for situations where you need to be in contact with sources that are in two directions or if you do not know what direction the signals will be coming from.
They may be mounted right side up or tipped upside down depending upon the desired pattern.
They also feature a very versatile clamp mounting system that will fit most every situation you will encounter.
| Electrical | |
| Frequency Range | 2400-2500MHz |
| Band width | 100MHz |
| Gain | 3dBi |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 25° |
| V.S.W.R | ≤1.5 |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Male |
| Antenna Radome Material | Fiberglass |
| Diameter of Installation Pole | Φ30-50mm |
| Mechanical | |
| Antenna Dimension | Φ20x150mm |
| Weight | 80g |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
2.4GHz Wi-Fi Wireless video systems applications.
Provides signal to clients in any direction (360-degree horizontal beamwidth).
The Type N connectorized is designed specifically for outdoor operation and is ideal for point to multipoint use in large open areas .
