Ultra Wide Band 2G/3GG/4G/5G 600-6000MHz Magnetic Antenna(AC-Q6060I37)

Name: Ultra Wide Band 2G/3GG/4G/5G 600-6000MHz Magnetic Antenna(AC-Q6060I37)
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

The UWB magnetic mount antenna is a 5GNR antenna solution, with high gain and efficiency ideal for maintaining constant mobile connectivity.

It covers all 5G,4G,3G and 2G frequencies and ideal for telematics systems, remote surveillance, asset tracking and any IOT system applications.The high performance make this antenna ideal for the most challenging installations.This magnetic mount antenna is easy to install with maximum durability.It has one cable with a SMA-Male standard connector,3m standard cable length and is fully customizable by offering additional connector types, cable lengths and cable types.

Get Antenna Price 

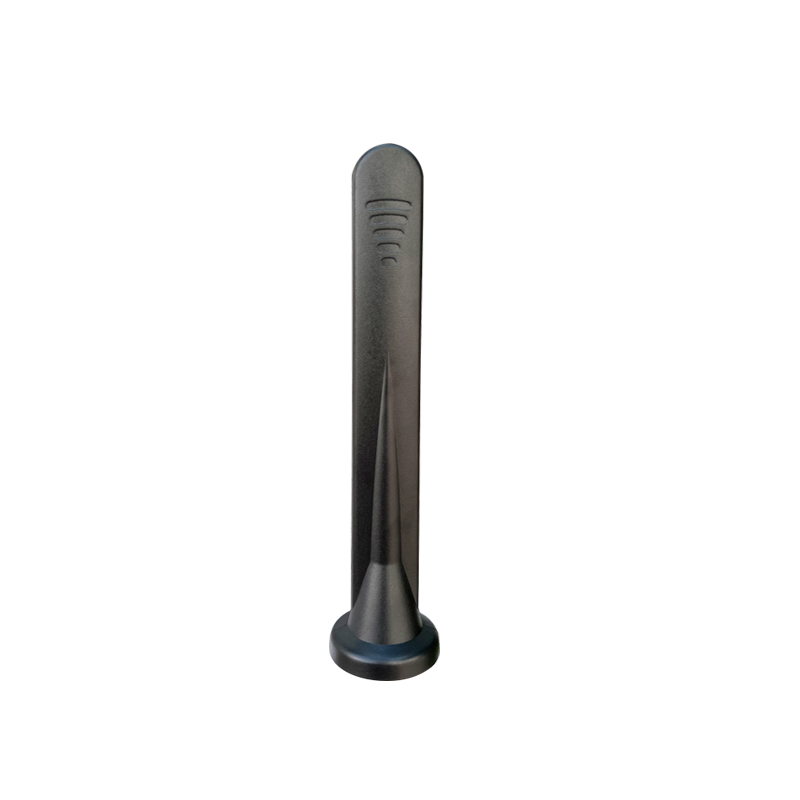

2G 3G 4G 5G 600-6000MHz Ultra Wide Band Magnetic Antenna.jpg

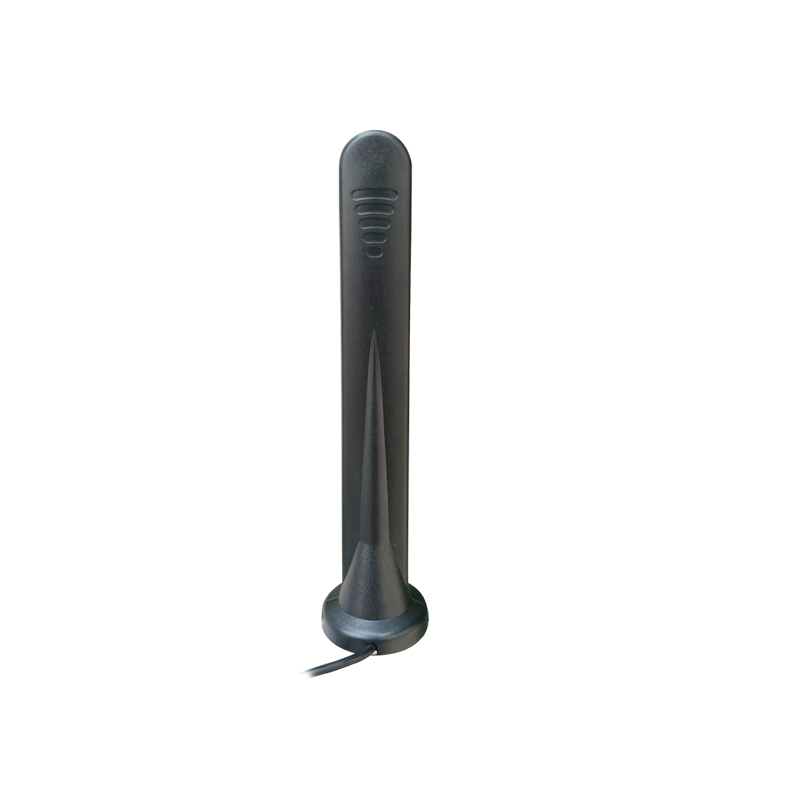

Ultra Wide Band 2G 3G 4G 5G 600-6000MHz Magnetic Antenna.jpg

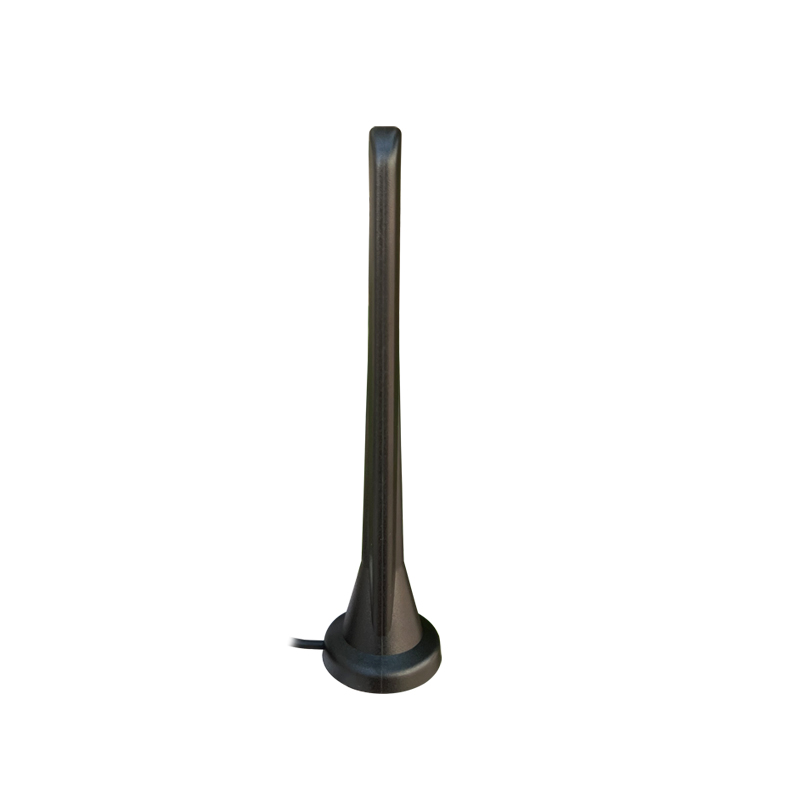

2G 3G 4G 5G 600-6000MHz Ultra Wide Band Magnetic Mount Antenna.jpg

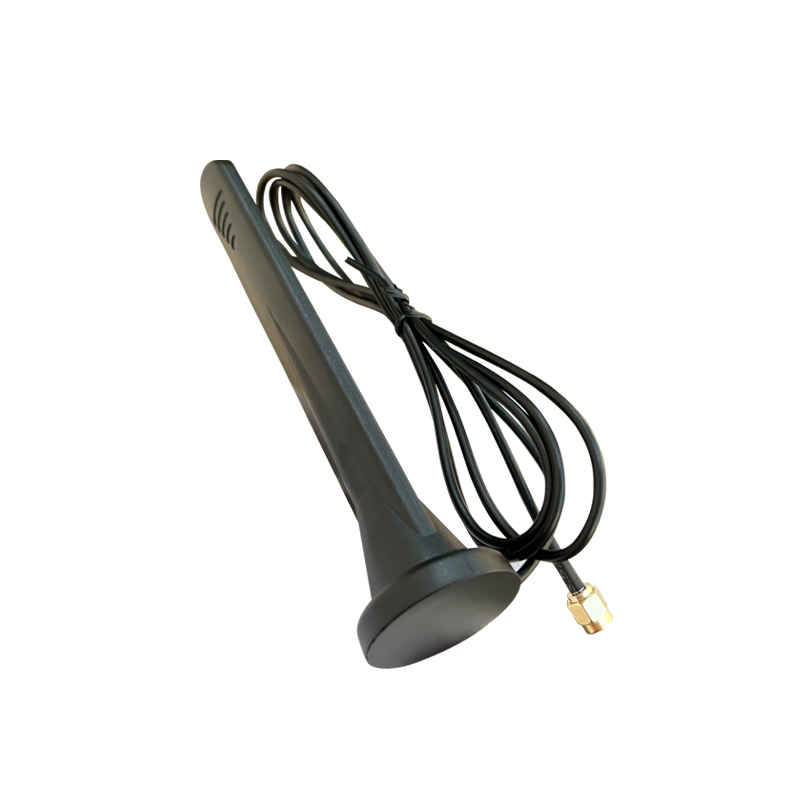

2G 3G 4G 5G 600-6000MHz Ultra Wide Band Magnetic Antenna with Cable.jpg

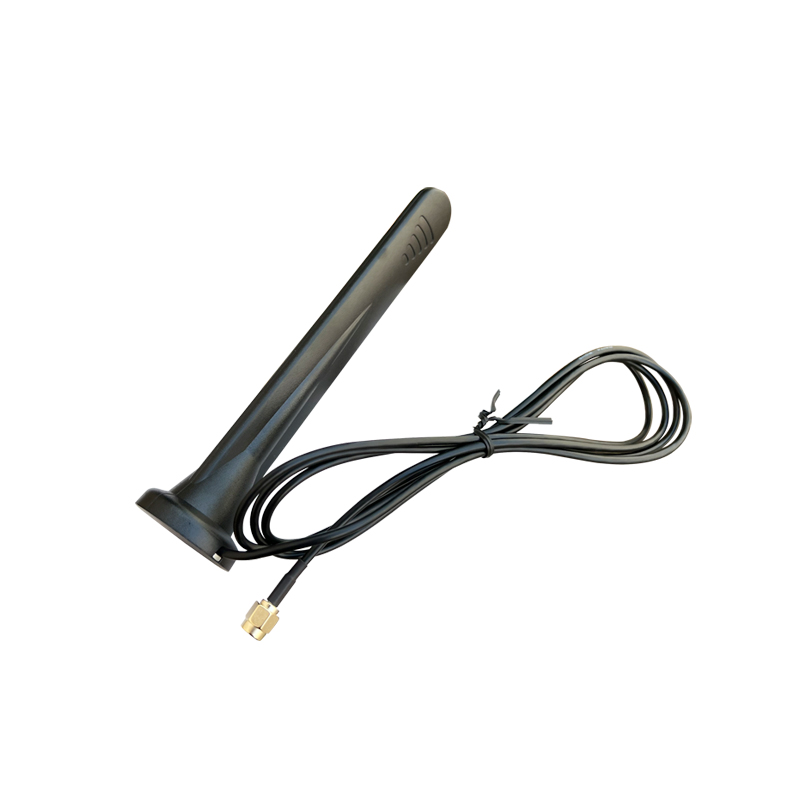

2G 3G 4G 5G 600-6000MHz Ultra Wide Band Magnetic Antenna with SMA Male Connector.jpg



Specifications of Ultra Wide Band 2G/3GG/4G/5G 600-6000MHz Magnetic Antenna(AC-Q6060I37)

Electrical
Frequency Range	600-960/1700-2700/3300-6000MHz
Gain	3/5dBi
V.S.W.R	≤2.0
Radiation	Omni-Direction
Polarization	Vertical
Maximum Input Power	50W
Impedance	50Ώ
Connector	SMA Male(can be customization )
Cable Type	RG174
Cable Length	3M
Antenna Radome Material	ABS
Mounting way	Magnetic
Mechanical
Dimensions	Φ36x158mm
Weight	63g
Operating Temperature	-40℃ to+70℃
RoHS Compliant	YES
