4-Port LTE MIMO Combination Antenna with SMA Connectors（AC-5GLTEX4-122X）

Name: 4-Port LTE MIMO Combination Antenna with SMA Connectors（AC-5GLTEX4-122X）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This high-performance 4-port LTE combination antenna is engineered to maximize data throughput and signal reliability for advanced wireless applications.Featuring a sleek,low-profile black enclosure,

it integrates four independent antenna elements into a single compact unit,supporting 4x4 MIMO technology essential for modern LTE-A and 5G networks.

The antenna is equipped with four durable SMA male connectors attached via short pigtail cables,allowing for flexible and direct connection to routers,gateways,modems,and industrial IoT equipment.

Its omnidirectional radiation pattern ensures consistent coverage in all horizontal directions,making it ideal for vehicle telematics,fleet management,smart city infrastructure,and fixed wireless access points.

Get Antenna Price 

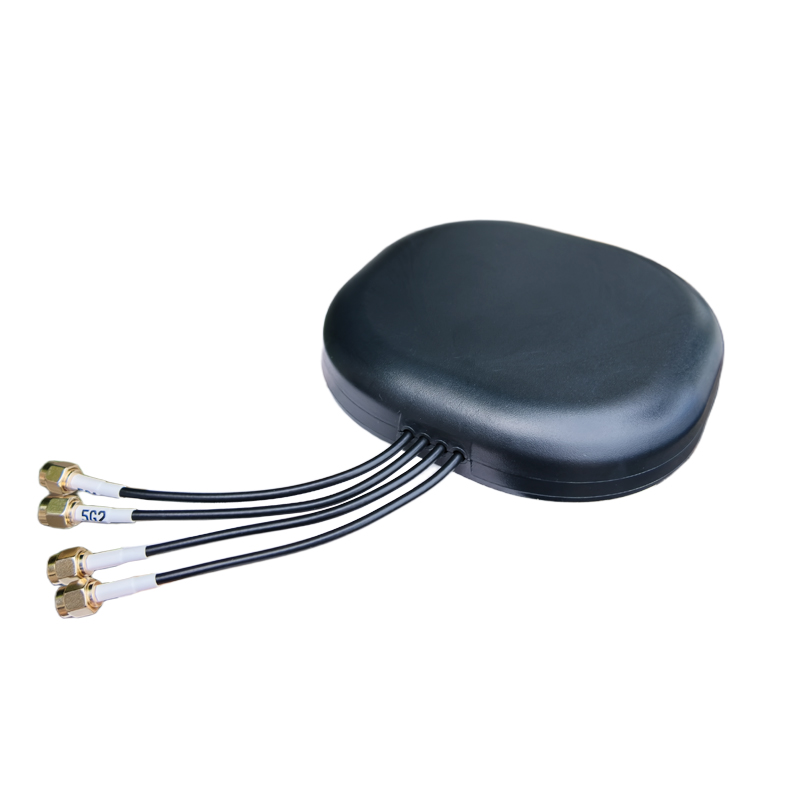

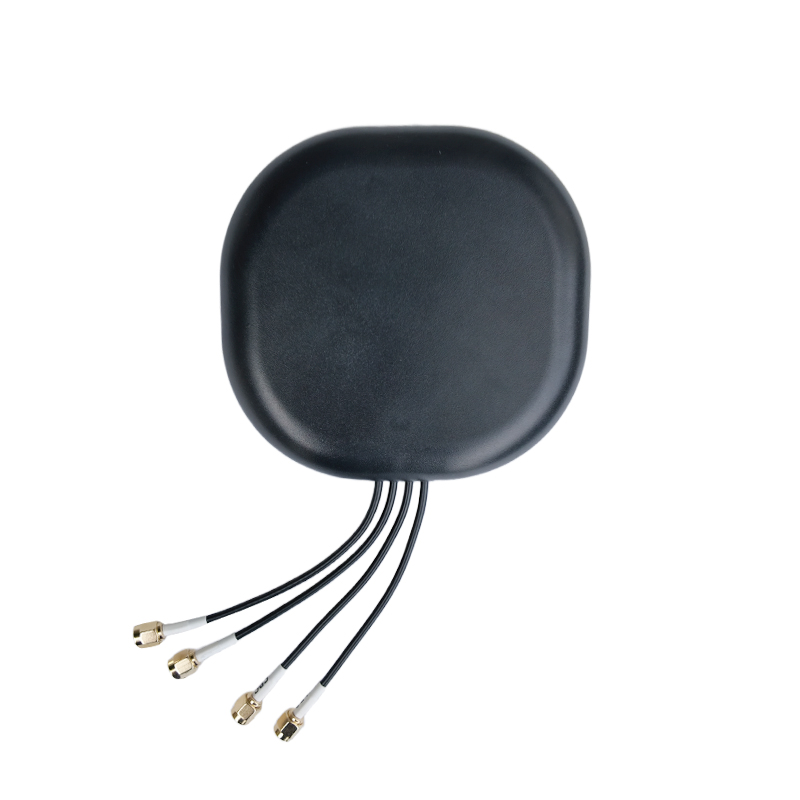

4-Port LTE MIMO Combination Antenna with SMA Connectors.jpg

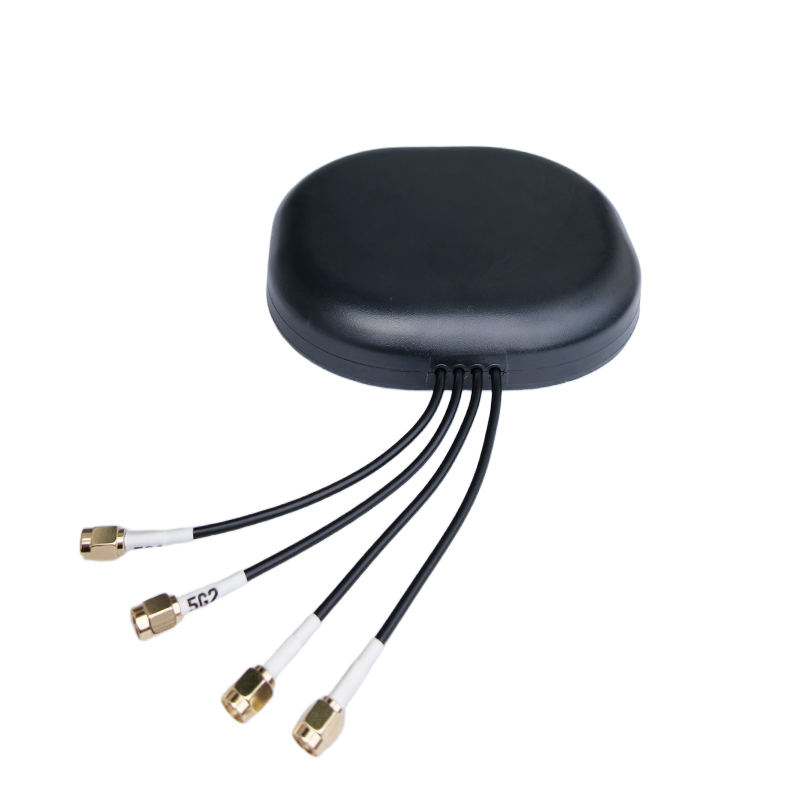

MIMO 4-Port LTE Combination Antenna with SMA Connectors.jpg

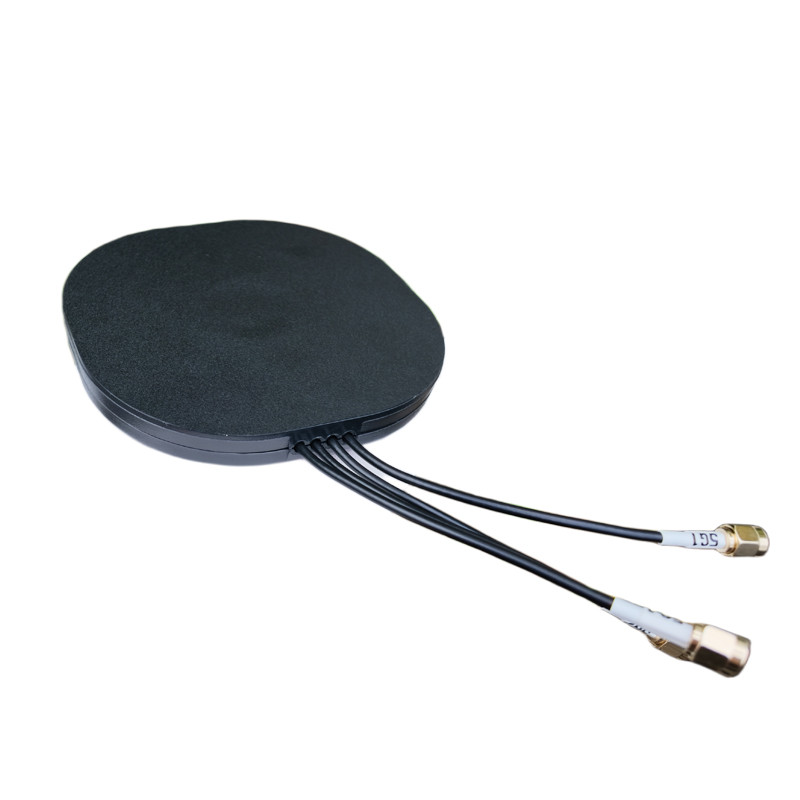

4-Port LTE MIMO Combination Antenna with 4xSMA Male Connectors.jpg

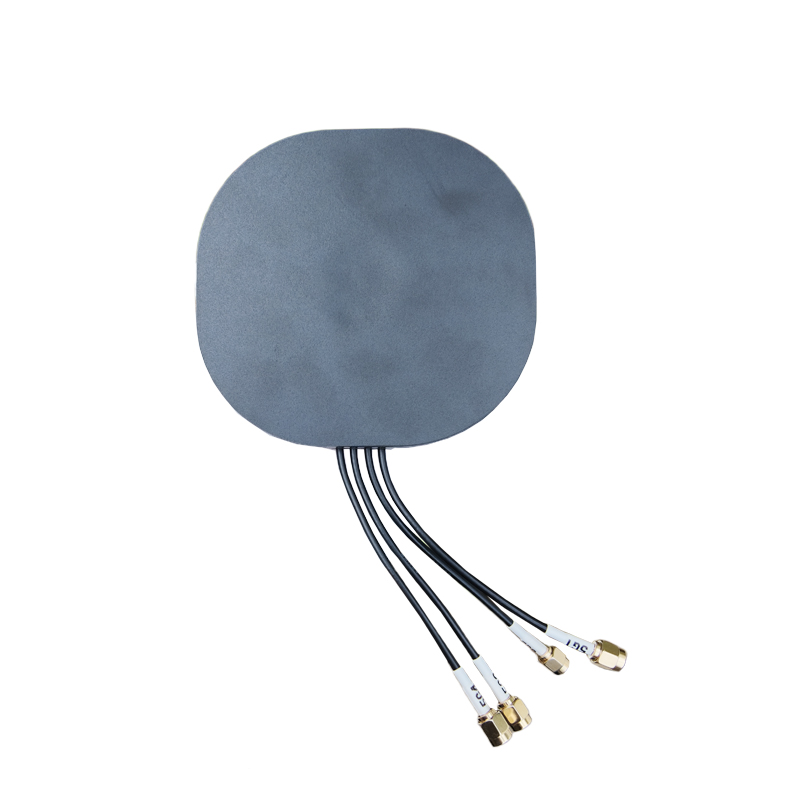

4-Port LTE MIMO Combination Antenna with Magnetic Mounting.jpg

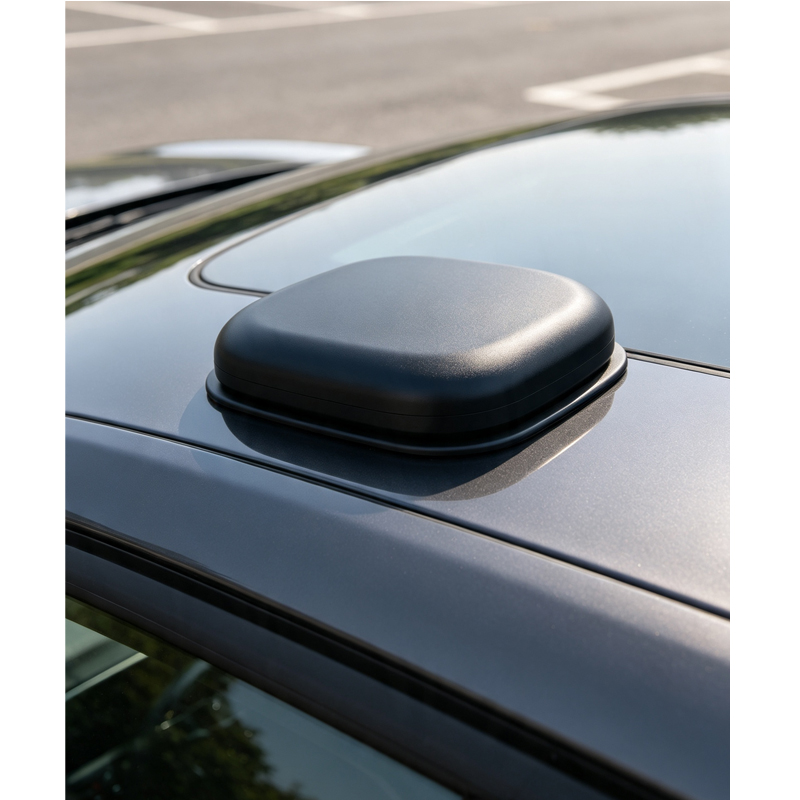

4-Port LTE MIMO Combination Antenna application.jpg



Specification of 4-Port LTE MIMO Combination Antenna with SMA Connectors（AC-5GLTEX4-122X）

Electrical
5GLTE Part:	Frequency range	617-960/1710-6000MHzX4
	V.S.W.R	617-960<2.5;1710-6000<2.0
	Gain	4/5/7dBi
	Polarization	Linear
	Impendance	50Ω
Mechanical
	Housing	Black
	Cable	4xLMR100
	Length	4x10cm
	Connector	4xSMA Male
Environmental
	Working Temp	-40℃~+85℃
	Humidity	95%~100%RH
	Waterproof	IP67
	Antenna Radome Material	ABS
	Mounting way	Magnetic
	Antenna Dimension	122x115x23mm
	Weight	156g
	RoHS Compliant	YES
