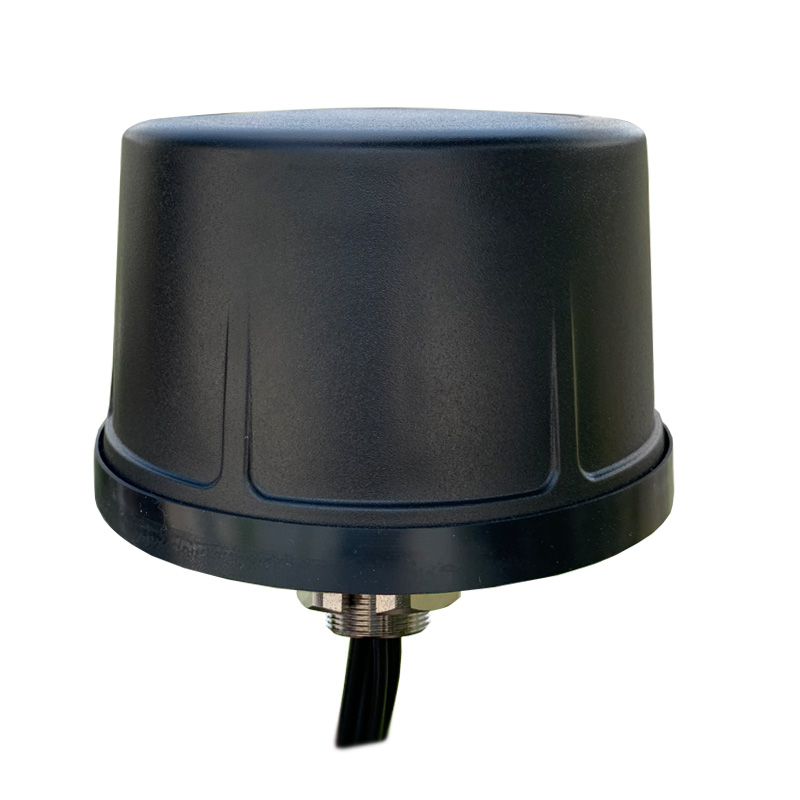

7-Ports Combo Antenna 5G/4G/WiFi/GPS/GLONASS（AC-GPS（GLONASS）/LTE4/WIFI2-FQX）

Name: 7-Ports Combo Antenna 5G/4G/WiFi/GPS/GLONASS（AC-GPS（GLONASS）/LTE4/WIFI2-FQX）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

The antenna is a seven port antenna with four elements designed to cover the 698-960/1710-2170/2300-2700/3300-4200MHz cellular LTE bands, two elements designed to cover the 2.4-2.5G WIFI

bands and one GPS/GLONASS element.

The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.

This antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.

The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance.

The cables are low loss allowing for lengths of up to 10 meters , critical for buses, trains and other commercial transport applications.

Get Antenna Price 



Specification of 7-Ports Combo Antenna 5G/4G/3G/2G/WiFi/GPS/GLONASS/2.4/5GHz（AC-GPS（GLONASS）/LTE4/WIFI2-FQX）

Electrical
GNSS Part:	Frequency Range	1575.42/1602-1610MHz
	Polarization Type	RHCP
	Impedance	50Ω
	Radiation Efficiency	50(without cable)
	LNA Gain	28±2dB Typical
	Noise Figure	3-3.5dB
	V.S.W.R	＜2.0
	DC Voltage	2.2-5.0V
	DC current	5-15mA
WIFI Part:	Frequency range	2400~2500/4900-6000MHz*2
	V.S.W.R	＜1.5
	Gain	5/7dBi
	Polarization	Linear
	Min. input power	1W
	Impendance	50Ω
LTE Part:	Frequency range	694-960MHz,1710-3700MHz*4
	V.S.W.R	＜1.5
	Gain	2.5/5/6dBi
	Polarization	Vertical
	Min. input power	2W
	Impendance	50Ω
Mechanical&Environmental	Housing	Black
	Cable	RG174x7
	Length	3m standard ,fully customizable
	Connector	3G/LTE/5G&GPS:SMA male WiFi:RP SMA male
	Operation Temperature	-40℃ to+85℃
	Humidity	65%-95%RH
	Waterproof	IP67
	Antenna Radome Material	ABS
	Mounting way	Screw Mount
	Antenna Dimension	200x90x100mm
	Weight	580g

Products

We are Your Reliable Partner of RF Antennas.

Asian Creation pays attention to the quality and service. We Keeping progressing, Pursuing integrity, Embracing future. Our teams are always enthusiastic and welcome to visit us and join hands for a prosperous future.

7-Ports Combo Antenna 5G/4G/WiFi/GPS/GLONASS（AC-GPS（GLONASS）/LTE4/WIFI2-FQX）

Specification of 7-Ports Combo Antenna 5G/4G/3G/2G/WiFi/GPS/GLONASS/2.4/5GHz（AC-GPS（GLONASS）/LTE4/WIFI2-FQX）

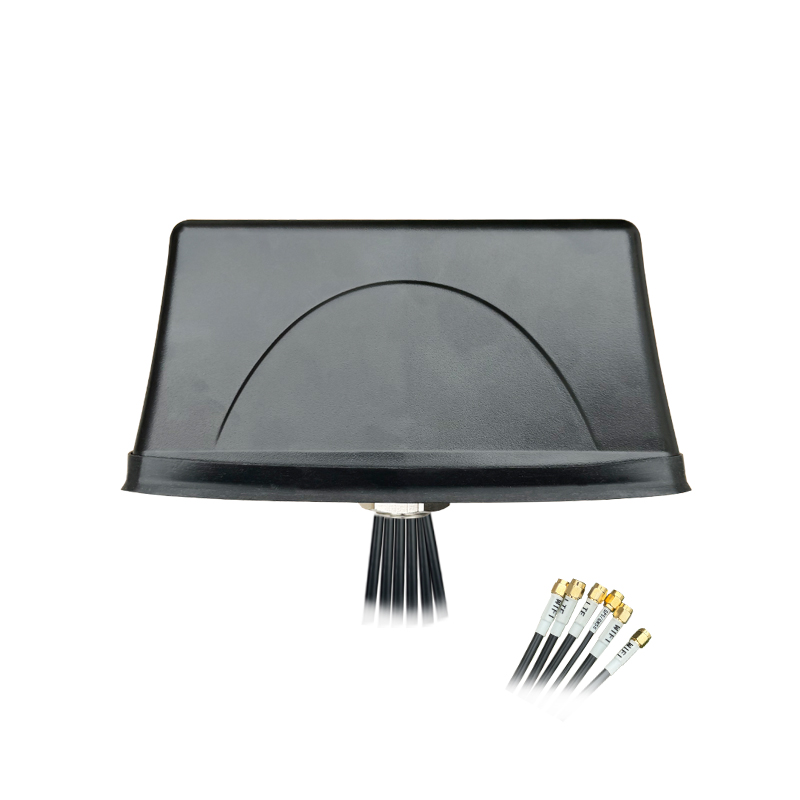

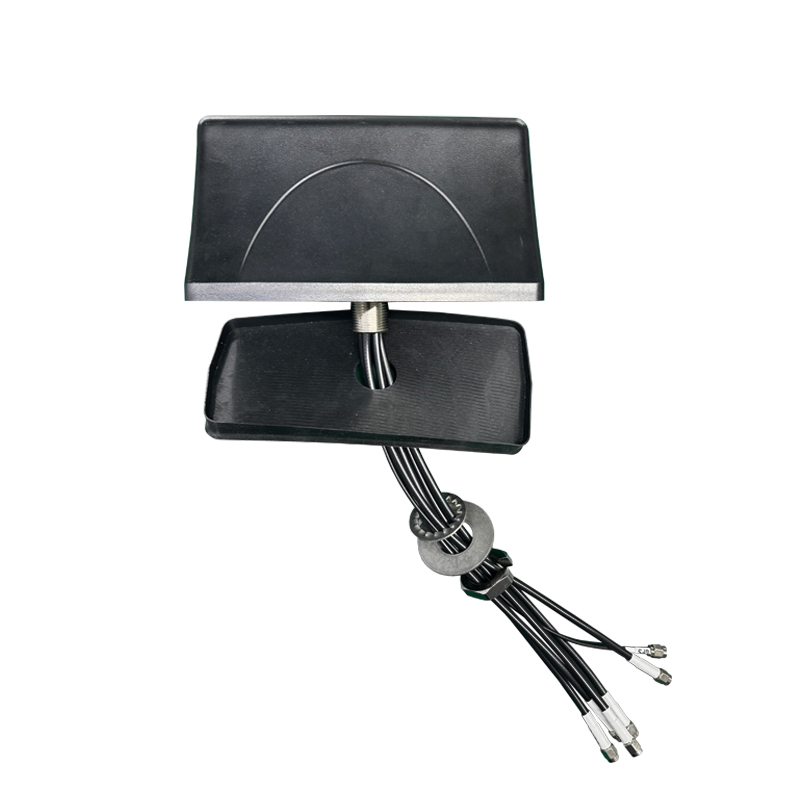

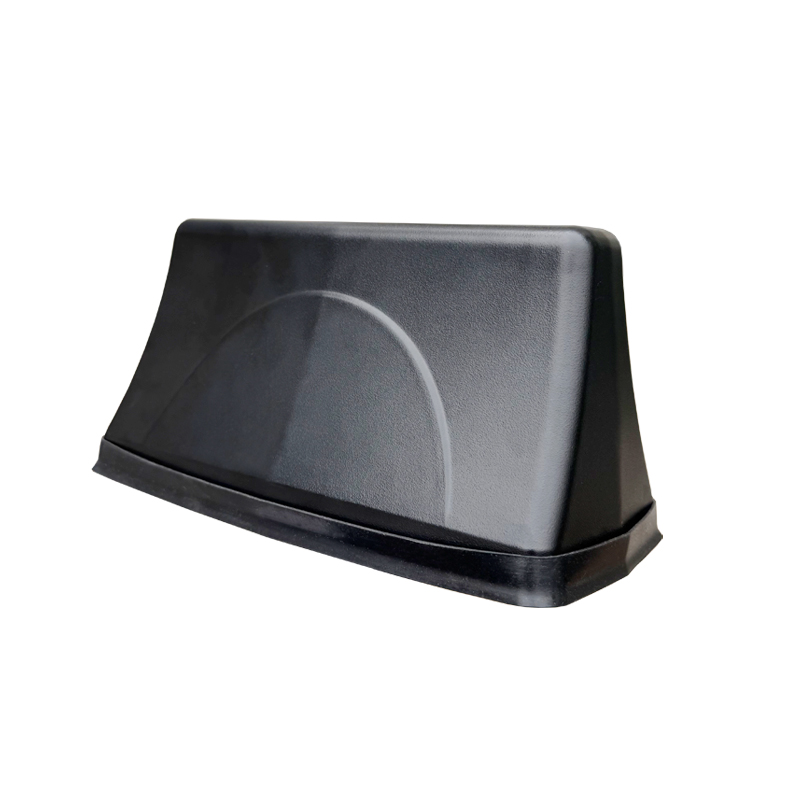

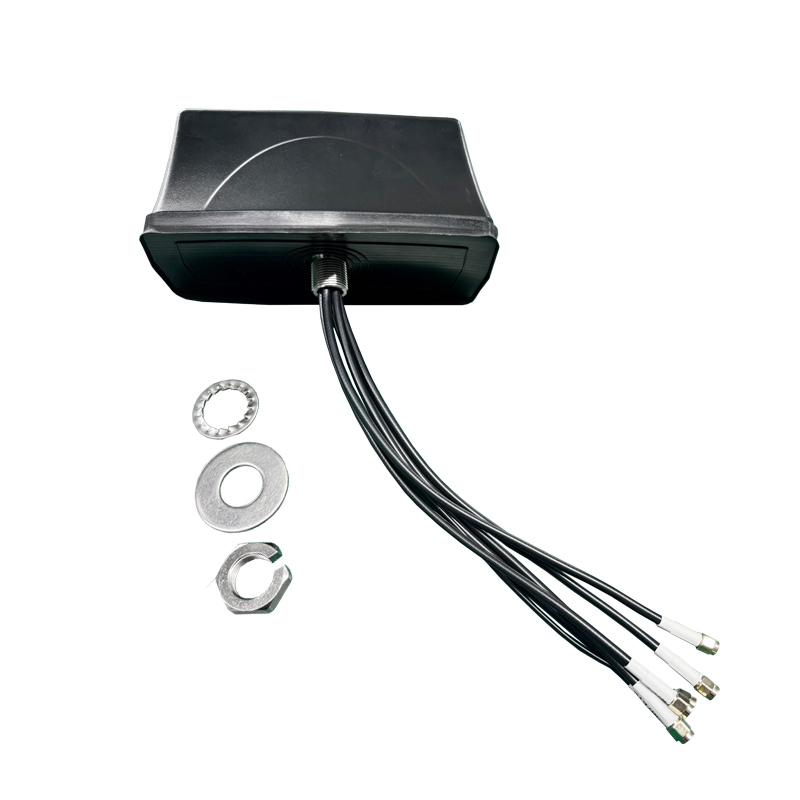

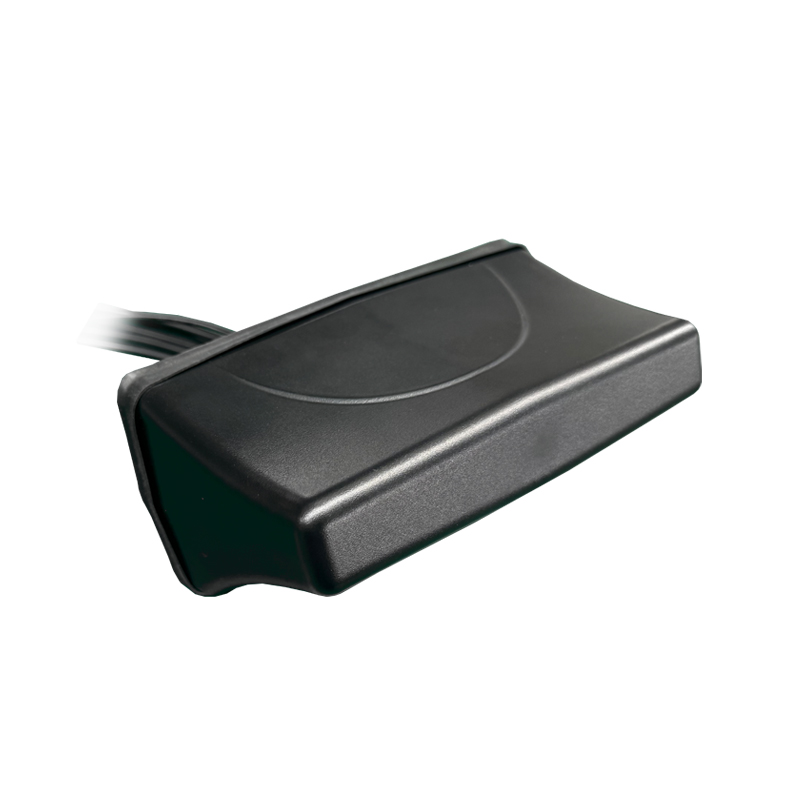

Related 7 in 1 Screw Mount Antennas
