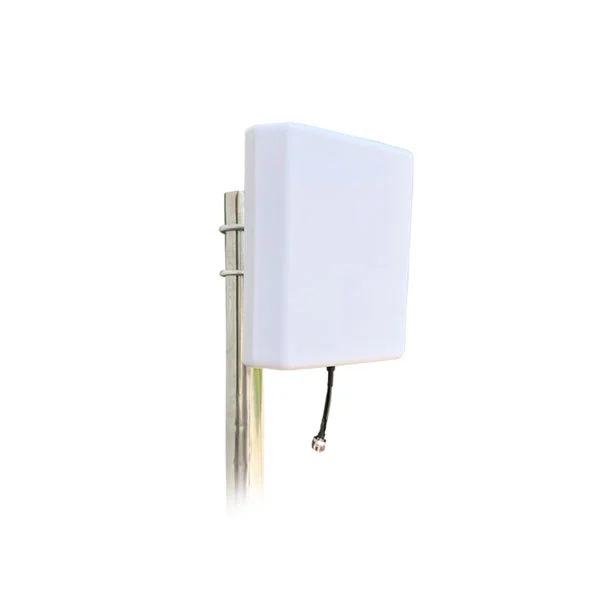

This type pole mount antenna is compact and light weight with Vertical Polarization in 700-2700MHz.
It includes a ABS radome enclosure that good adaptability of environment.
Improve the cellular signal reception for the 4G Routers. The directional panel antenna is vertical 4G.
This antenna is a mini-directional 4G/mulitband panel antenna designed for 4G/3G access to complement 4G routers.With 5 dBi gain on the low band and 7 dBi gain on the high bands, the antenna offers an excellent size vs. performance ratio.
The antenna as standard has stander low loss cables terminated in N female connectors..
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| F/B Ratio | ＞12/18 dB |
| Gain | 5/7dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Direction |
| Horizontal Beam width | 68° |
| Vertical Beam width | 58° |
| Polarization | Vertical |
| Lightning Protection | DC-Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | ABS |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30-Ø50mm |
| Mechanical | |
| Dimensions | 207x180x45mm |
| Weight | 200g |
| Rated wind velocity | 60m/s |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
It includes a ABS radome enclosure that good adaptability of environment.
This type pole mount antenna is Compact and light weight with Vertical Polarization
With 5 dBi gain on the low band and 7 dBi gain on the high bands, the antenna offers an excellent size vs.
