RFID Antenna gives you a wide read field and high-speed RF signal conversion, so data capture is fast and accurate, even in expansive, high-demand environments.
It is easy to mount on the pole of outdoor, and its rugged white housing is at home in both customer-facing and industrial settings. So you can achieve superior read zones around stockroom shelves, warehouse doorways and dock platforms – anywhere boxes and pallets are moving into and out of your facility.
| Electrical | |
| Frequency Range | 902-928MHz |
| Center frequency | 915MHz |
| Gain | 10dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 15° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ20x1500mm |
| Weight | 850g |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
If you need maximum distance for your RFID project you need this incredibly durable, outdoor antenna with 10dBi gain.

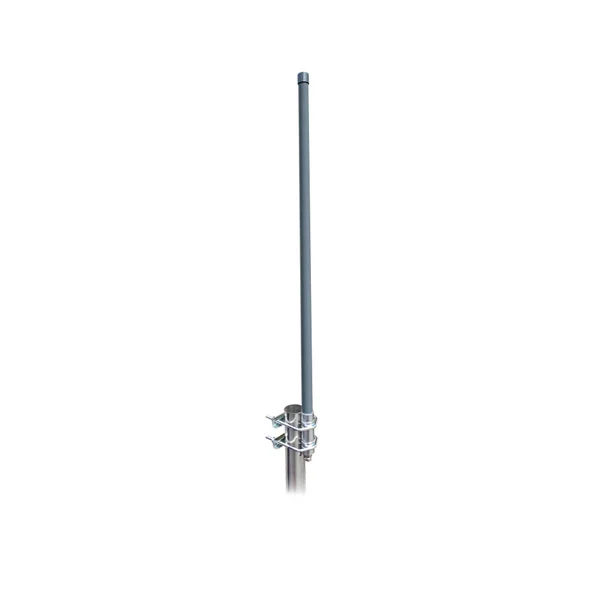

Omni antenna provides 10 dBi gain and 360 degree wide area coverage.
Robust enough to tolerate outdoor environment and water-proof includes bracket for mounting.
