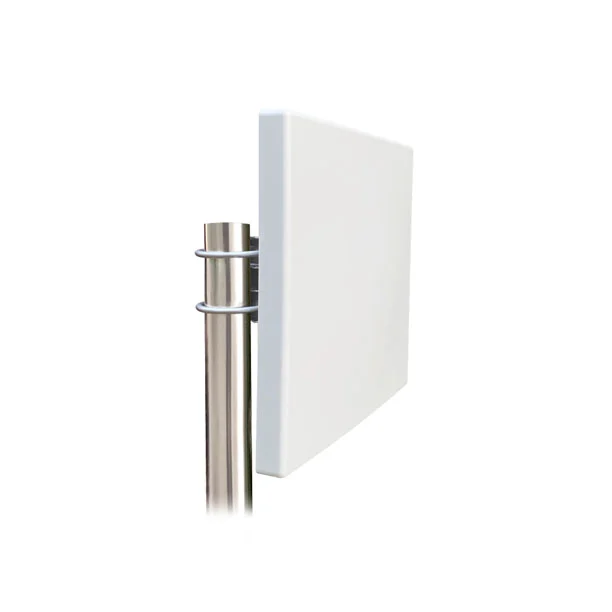

This directional MiMo Antenna is excellent for simultaneous operation in both WiFi Bands, allowing for 802.11AC bridging, or providing WiFi access into exact areas of desired coverage.
Both antenna connectors take input from either band, giving 10dBi on 2.4 GHz, and a whopping 11dBi of directional power on the 5 GHz band. Covers the entire 2.4 and 5 GHz spectrum.
It is vertically or horizontally polarized with strong directional effect incl. 4x N-female socket; IP67; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast.
| Electrical | |
| Frequency Range | 2x2400-2500/2x5150-5850 MHz |
| F/B Ratio | ≥25dB |
| Gain | 10/11dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Direction |
| Horizontal Beam width | 82°/32° |
| Vertical Beam width | 41°/30° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | 4xN Female |
| Antenna Radome Material | ABS |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 250x250x25mm |
| Weight | 700g |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
This technology allows for the attenuation of unwanted signals from adjacent channels and/or co-located equipment.
The Panel Antenna can be supplied with per-assembled lengths of low-loss cable for easy installation.
For all 50 Ohm in-building signal boosters Up to 4x10dBi gain.
