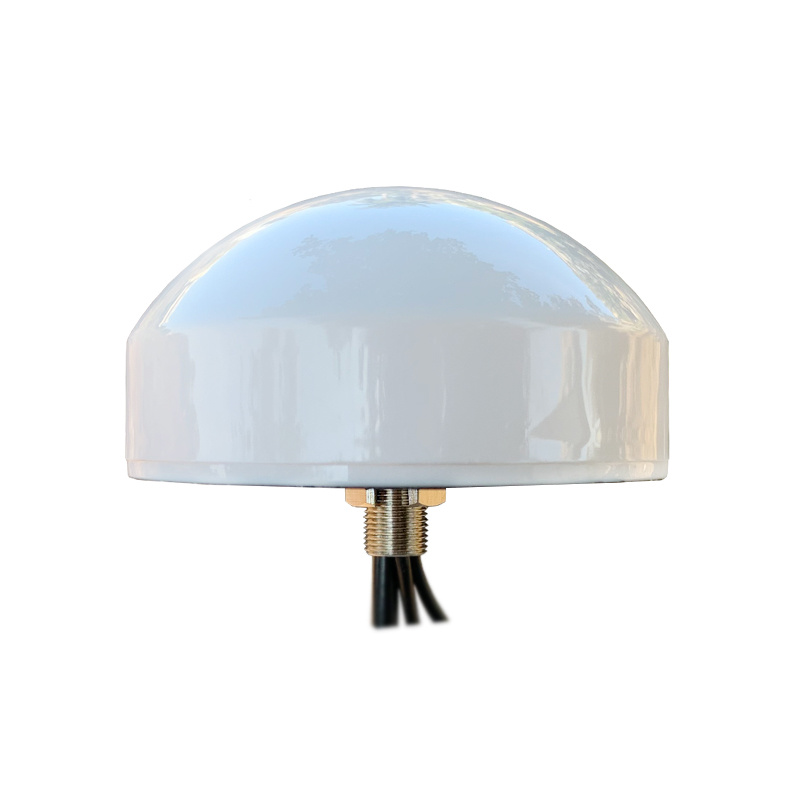

GPS(GLONASS) WIFI2 4G/5G/LTE 4 in 1 Combination Antenna（AC-GPS(GLONASS)/WIFI2/5GLTE-09S）

Name: GPS(GLONASS) WIFI2 4G/5G/LTE 4 in 1 Combination Antenna（AC-GPS(GLONASS)/WIFI2/5GLTE-09S）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This antenna is a heavy-duty, fully IP65 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.

It is unique in the market because it with high efficiency in a compact format.

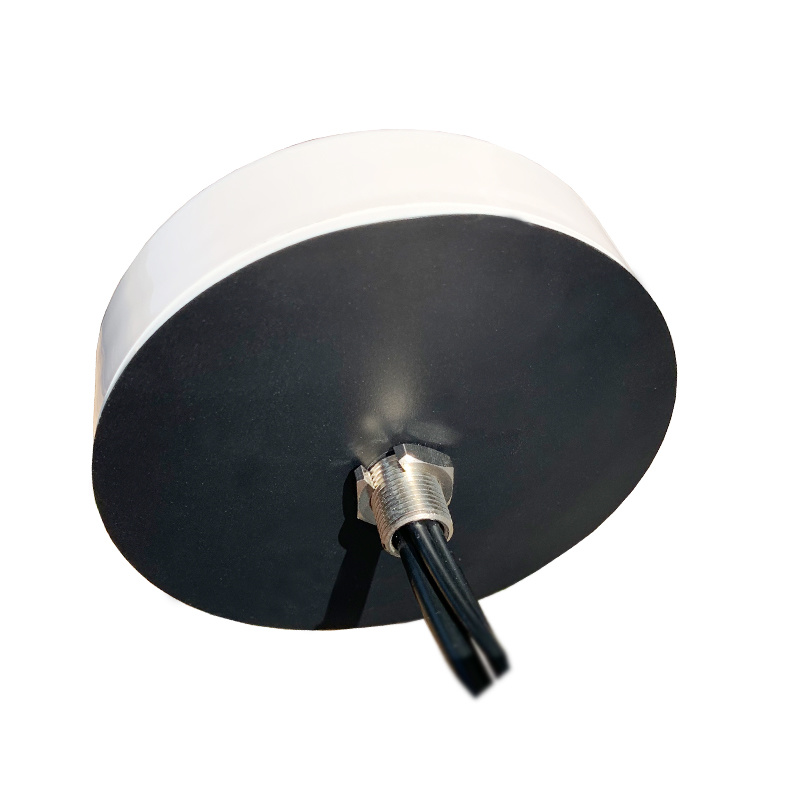

This antenna screws down in permanently onto a roof or metal panel and can be pole or wall-mounted For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, it provides a robust, rugged antenna that is durable, even in extreme environments.

Get Antenna Price 



Specification of GPS(GLONASS) WIFI2 4G/5G/LTE 4 in 1 Combination Antenna（AC-GPS(GLONASS)/WIFI2/5GLTE-09S）

Electrical
GPS Part:	Dielectric Antenna
	Frequency Range	1575.42/1602-1616MHz
	Polarization Type	RHCP
	Gain	2dBi
	V.S.W.R	<2.0
	Impedance	50Ώ
	LNA
	LNA Gain	28±2dB Typical
	Noise Figure	1.5dB
	Ex-band Attenuation	12dB@CF+50MHz/16dB@CF-50MHz
	V.S.W.R	＜2.0
	Voltage	2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
	Current Consumption(mA)	11 Max
LTE Part:	Frequency range	698-960/1710-3800MHz
	V.S.W.R	≤2.0;Max2.5
	Gain	3dBi
	Polarization	Linear
	Impendance	50Ω
WIFI Part:	Frequency range	2400-2483/4900-5825MHzX2
	V.S.W.R	<2.0
	Gain	3dBi
	Polarization	Linear
	Impendance	50Ω
Mechanical
	Housing	White
	Cable	4XRG174
	Length	4X3M
	Connector	4XSMA male
Environmental
	Working Temp	-40℃~+85℃
	Humidity	95%~100%RH
	Waterproof	IP65
	Antenna Radome Material	ABS
	Mounting way	Screw Mount
	Antenna Dimension	Ф95x50mm
	Weight	200g
	RoHS Compliant	YES
