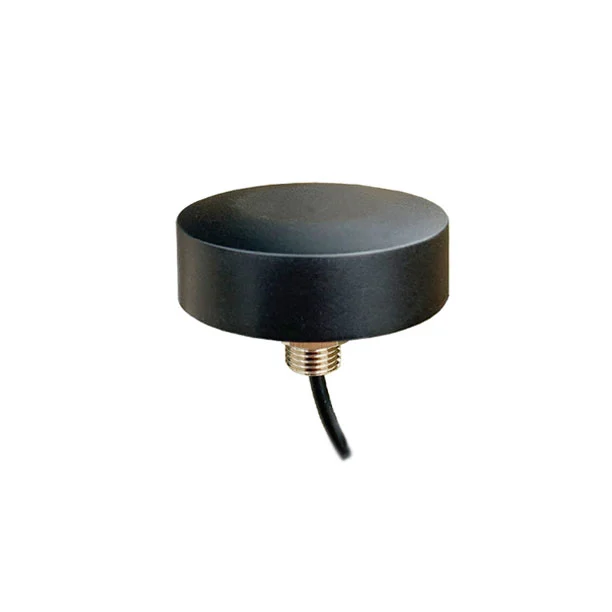

AC-GPS/GLONASS-05 is a dual-band antenna covering both GPS and GLONASS frequencies.
Its proprietary filtering design allows wide band coverage while achieving superior out-of-band rejection.
This antenna comes in an all-plastic, non-corrosive,non-corrosive low profile package for vehicle mounting or fixed installations. This antenna is ideal for any global GPS/GLONASS tracking or time synchronization application that requires an externally mounted antenna.
| Electrical | ||
| Dielectric Antenna | Frequency | 1575MHz/1602MHz |
| Center Frequency | 1590MHz | |
| V.S.W.R | <1.5 | |
| Band width | ±3 MHz | |
| Impendence | 50Ω | |
| Peak Gain | 5dBic Min/1575MHz 4dBic Min/1602~1616MHz | |
| Gain Coverage | ≥- 4dBic at -90°~90°(over75% volume) | |
| Polarization | RHCP | |
| LNA | LNA Gain(Without cable) | 28dB Typical |
| Noise Figure | 1.5dB | |
| Filter Out Band Attenuation | 12dB Min f0+50MHz 16dB Min f0-50MHz | |
| V.S.W.R | ＜2.0 | |
| DC Voltage | 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other | |
| DC current | 11mA Max | |
| Mechanical | ||
| Weight | ＜100g | |
| Antenna Dimension | Φ47x14mm | |
| Cable | RG174 | |
| Length | 3M | |
| Connector | SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX or other | |
| Mounting way | Screw Mount | |
| Housing | Black | |
| Environmental | ||
| Operating Temperature | -40℃~+80℃ | |
| Vibration | Sine sweep 1g(0-p)10~50~10Hz each axis | |
| Humidity | Humidity95%~100%RH | |
| Weatherproof | IP66 | |
| Antenna Radome Material | ABS | |
| RoHS Compliant | YES |
Featuring an active band filtering and robust design with a screw mount and adhesive on the base.
It is a perfect choice when reinforced signal reception is required for both positioning and communication.
It can either be embedded or used externally with a device.
