Passive Iridium Magnetic Mount Antenna With SMA Connector（AC-Iridium-19）

Name: Passive Iridium Magnetic Mount Antenna With SMA Connector（AC-Iridium-19）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

Iridium External antennas can help ensure connectivity in situations where devices may be used on the interior of buildings or inside vehicles, as well as to help improve the speed and reliability of Iridium

Connected devices.

These antennas have high discrimination against multi-path(reflected) signals, and are immune to RF and electrical noise.They are balanced and isolated from platform ground, ensuring immunity to common-mode noise, and are unaffected by nearfield object de-tuning.The antenna also supports Satelles STL(Satellite Time and Location) services, used for GPS back-up.

Get Antenna Price 

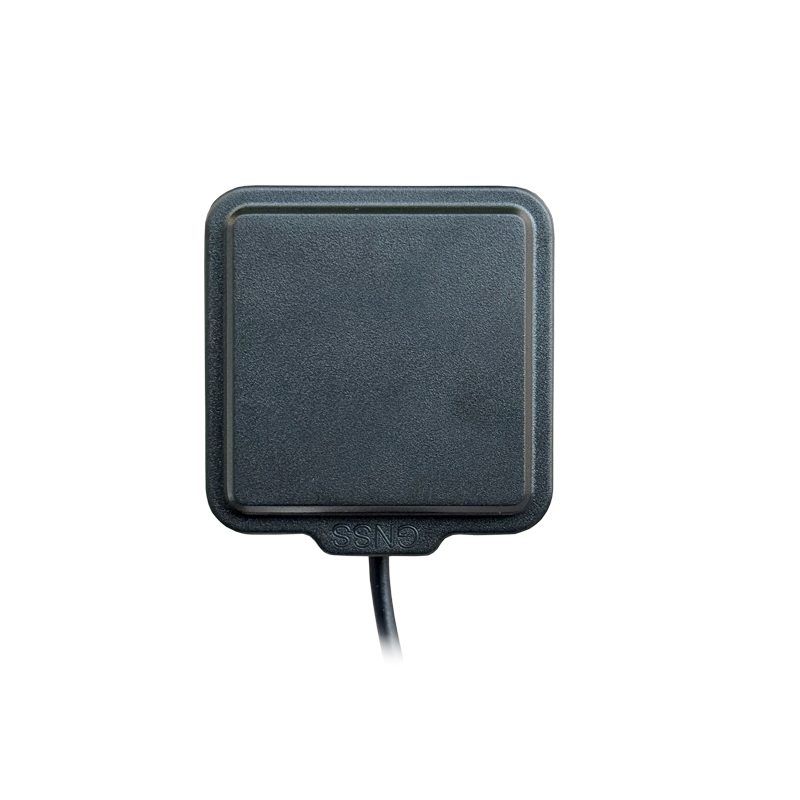

Passive Iridium Magnetic Mount Antenna With SMA Connector.jpg

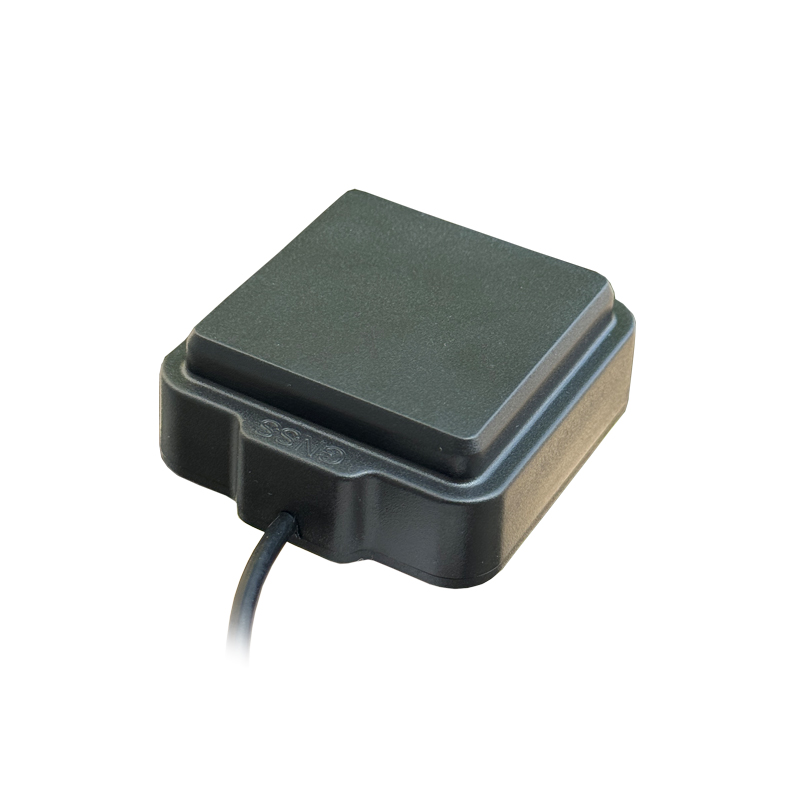

Iridium Passive Magnetic Mount Antenna.jpg

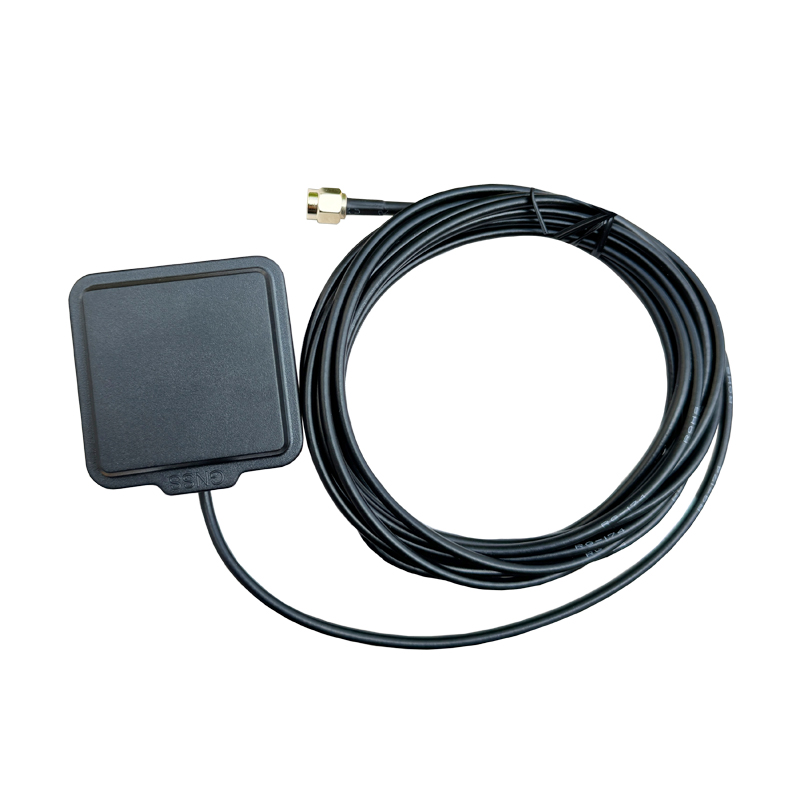

Iridium Passive Magnetic Mount Antenna With SMA Connector.jpg

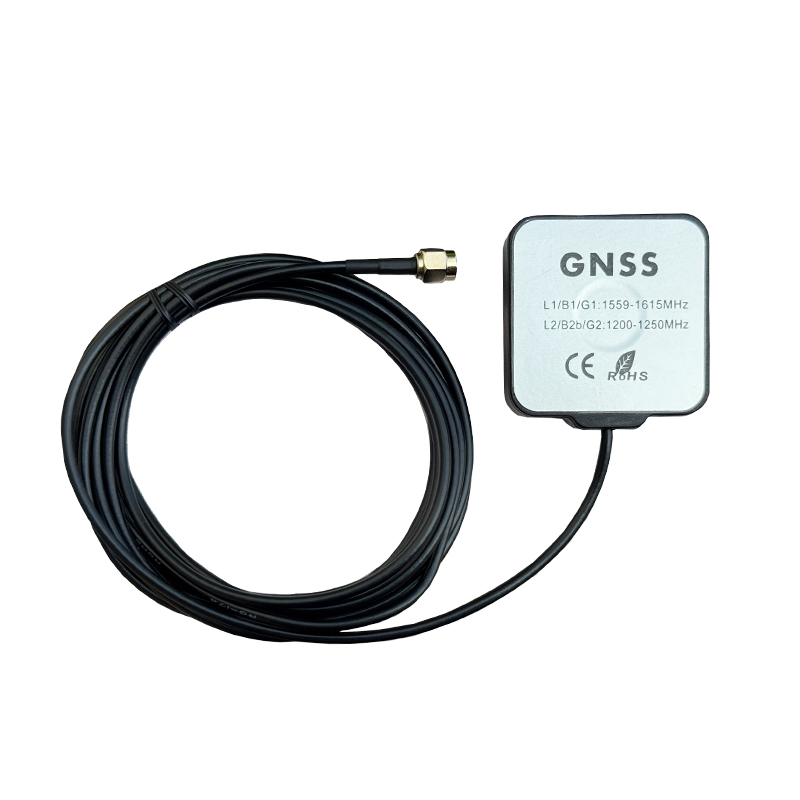

Iridium Passive Magnetic Mount Antenna With SMA Male Connector.jpg

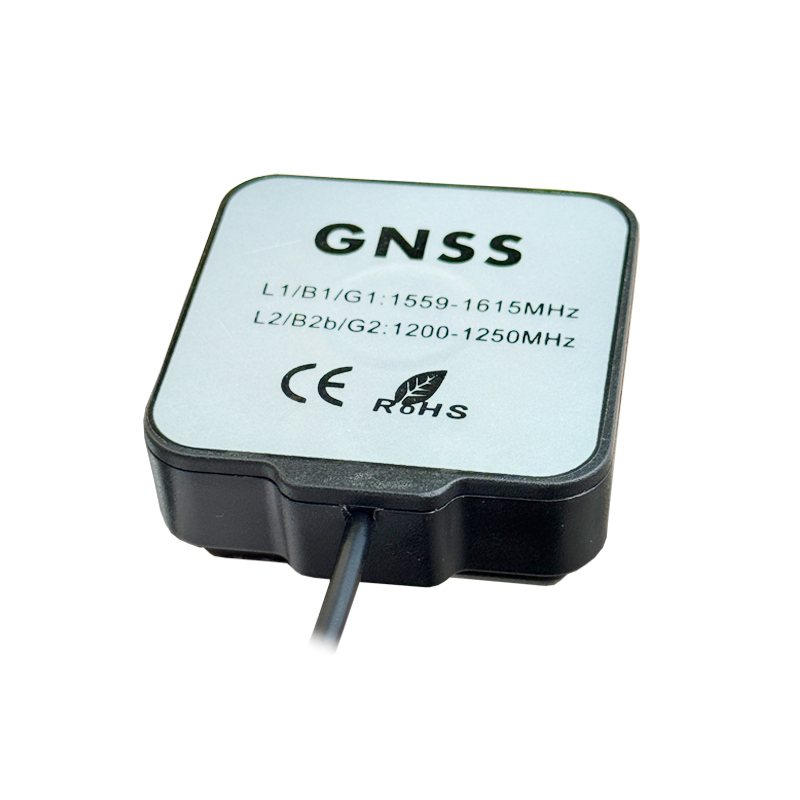

Passive Iridium Magnetic Mount Antenna.jpg



Specification of Passive Iridium Magnetic Mount Antenna With SMA Connector

Electrical
Antenna	Frequency Range	1616-1626MHz
	Band Width	20 MHz min. @S11-10 dB
	V.S.W.R	＜1.5
	Polarization Type	RHCP
	Gain range	>-4dBi at –90°<0 <+90°<b19>
	Gain	>3dBi based on 7cmx7cm base
	Impedance	50Ώ
Mechanical	Polarization	sinusoidal scanning 1g(0-p) 10~50~10Hz per axis
	Housing	Black
	Cable	RG174
	Length	3M
	Connector	SMA MALE
	Antenna Radome Material	ABS
	Mounting way	Magnetic
Environmental	Dimensions	49.5 x 49.5 x 20mm
	Weight	76g
	Operating Temperature	-40℃~+80℃
	Humidity	UP to 95%
	Waterproof	IP67
	RoHS Compliant	YES
