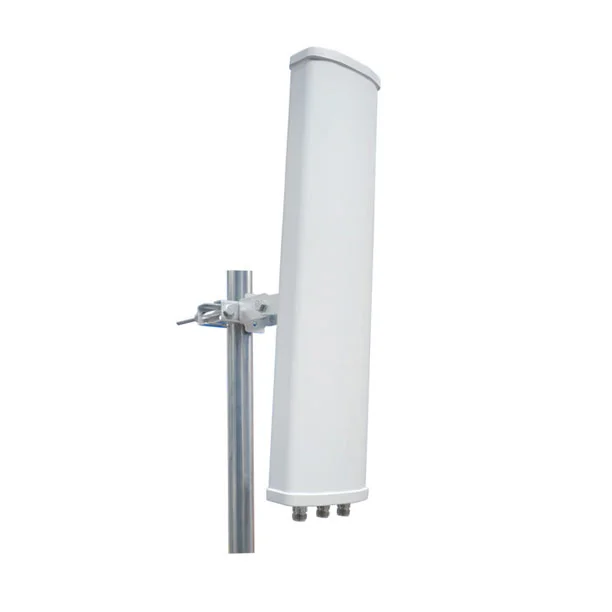

This is a 3-port 14 dBi sector antenna designed for use in 5.8 GHz WIFI networks.
The unique design of these 5.8 GHz sector antennas minimizes interference by utilizing a 90-degree gain pattern and ±45-degree slant dual polarization scheme.
The sector antenna is designed to provide high-gain and maximum coverage and feature improved front-to-back and pattern roll off that allows for higher spectral efficiency.
The antennas carrier grade construction features a light colour PVC radome for durability and aesthetics. The included mounting system features heavy-duty mount for pole mounting applications.
This antenna features 3x N Female connectors.
| Electrical | |
| Frequency Range | 4950-5850MHz |
| F/B Ratio | ≥20dB |
| Gain | 3x14dBi |
| V.S.W.R | <1.5Type;Max 2.0 |
| Radiation | Direction |
| Horizontal Beam width | 90° |
| Vertical Beam width | 7° |
| Polarization | Vertical&±45 |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 3xN Female |
| Antenna Radome Material | PVC |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 500x120x60mm |
| Weight | 1.4KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
They are perfectly helpful for 802.11n and 802.11ac outdoor wireless access points in multithreaded communications.
They come with adjustable angle brackets for adjusting the coverage angle from 0 to 10 degrees.
This Base Station Sector model features 3x3 MiMo (Dual Polarization H and V) in 5GHz band with 3x14 dBi Gain.
