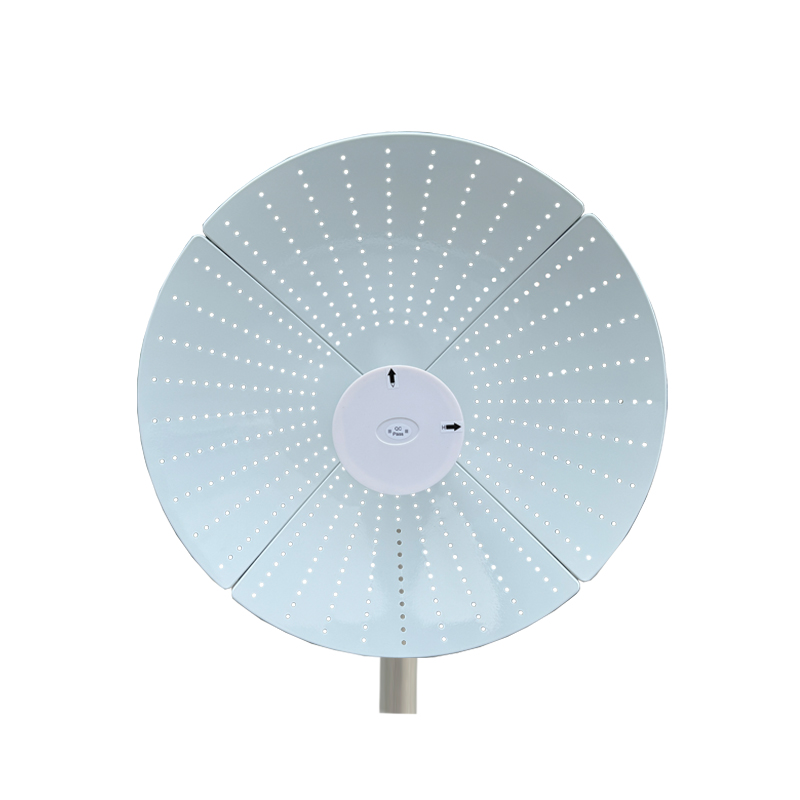

Wide Band OperationVertically or Horizontally Polarized, extremely Rugged for Extreme EnvironmentAntenna is supplied together with the bracket, which is possible to set easily in both directions. The Parabolic Dish Antenna systems offered by Wireless are constructed of an aluminum alloy dishwith powder coat paint finish for excellent mechanical. The 25dBi parabolic antenna operating from 3.5 - 3.8 GHz This antenna includes dual horizontal andvertical polarization 2x2 MIMO in the 3.5 GHz Citizens Broadband Radio Service (CBRS) frequencyband supports LTE deployments in the CBRS 3.5 -38 GHz spectrum.
| Electrical | |
| Frequency Range | 3300-3800MHz |
| F/B Ratio | ＞30dB |
| Gain | 2x25dBi |
| V.S.W.R | ≤1.5Type;Max 2.0 |
| Radiation | Direction |
| Horizontal Beam width | 8° |
| Vertical Beam width | 9° |
| Polarization | Vertical and Horizontal |
| Lightning Protection | DC Grounded |
| Cable Type | LMR195 |
| Cable Length | 20cm |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 2xN Female |
| Antenna Radome Material | Aluminium alloy |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Φ30-50mm |
| Mechanical | |
| Dimensions | Φ600mm |
| Weight | 5.5KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
These Antenna packed in pair with full mounting hardware,Homeland Security, Back-Haul and point-to-point applications.
They come complete with universal galvanized steel, powder coat paint mounting system for pole mount applications.
The parabolic dish antenna can be used in a wide variety of high performance wireless applications.
