800-960MHz Omnidirectional Antenna with Embedded Connector for Rugged M2M Applications（AC-Q840F05EC）

Name: 800-960MHz Omnidirectional Antenna with Embedded Connector for Rugged M2M Applications（AC-Q840F05EC）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This robust omnidirectional antenna is precision-tuned for the 800-960MHz frequency band,delivering reliable coverage for GSM, CDMA, LTE, and IoT applications.

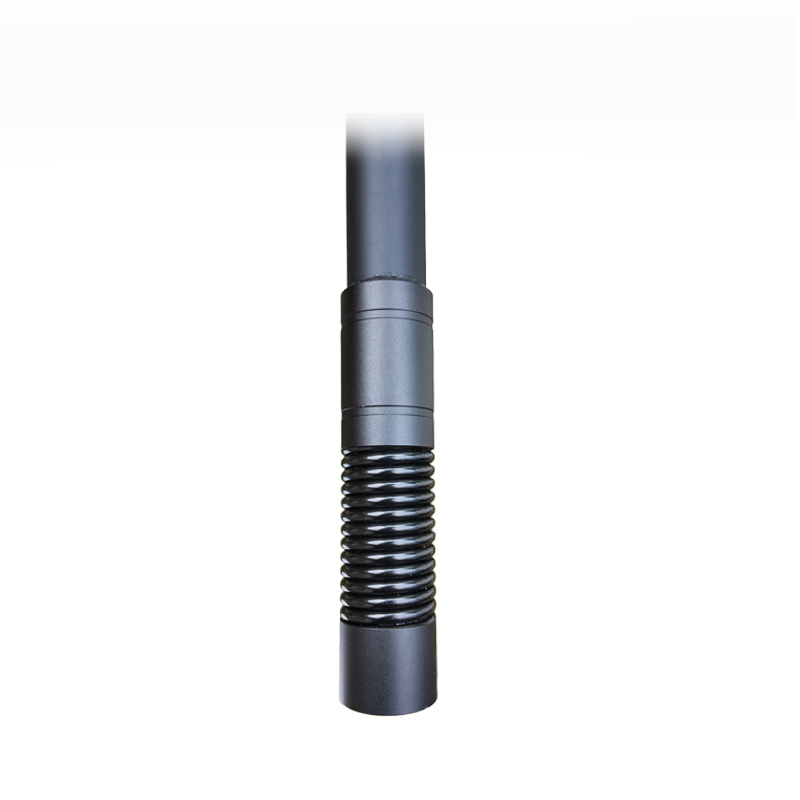

Unlike standard antennas with exposed connectors,this model features a unique embedded connector design that integrates the interface seamlessly into the base.

This specialized significantly enhances durability by protecting the connection point from physical damage, moisture ingress, and accidental disconnection, making it ideal for harsh industrial environments.

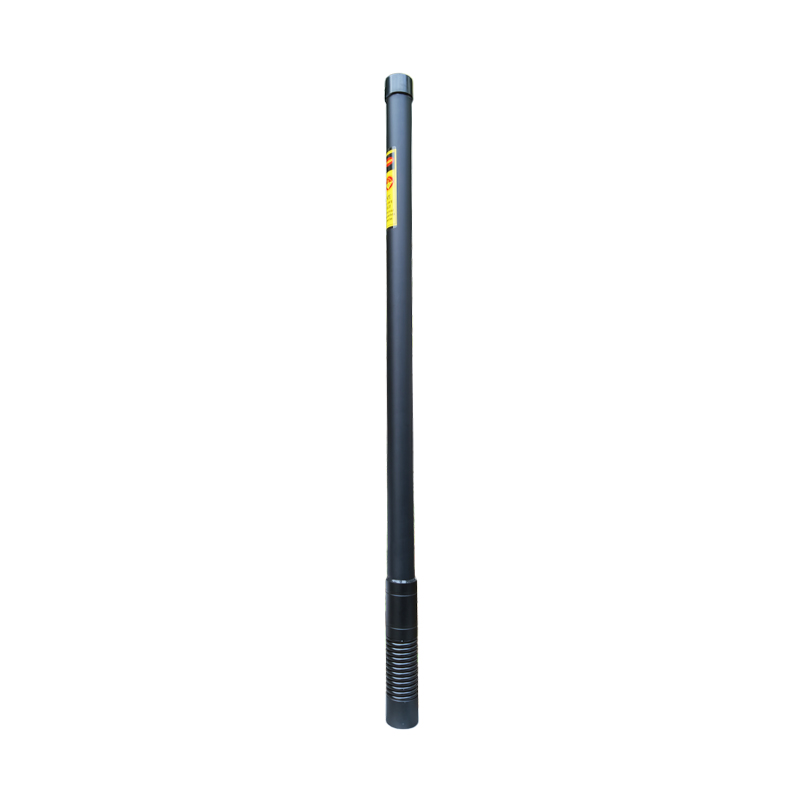

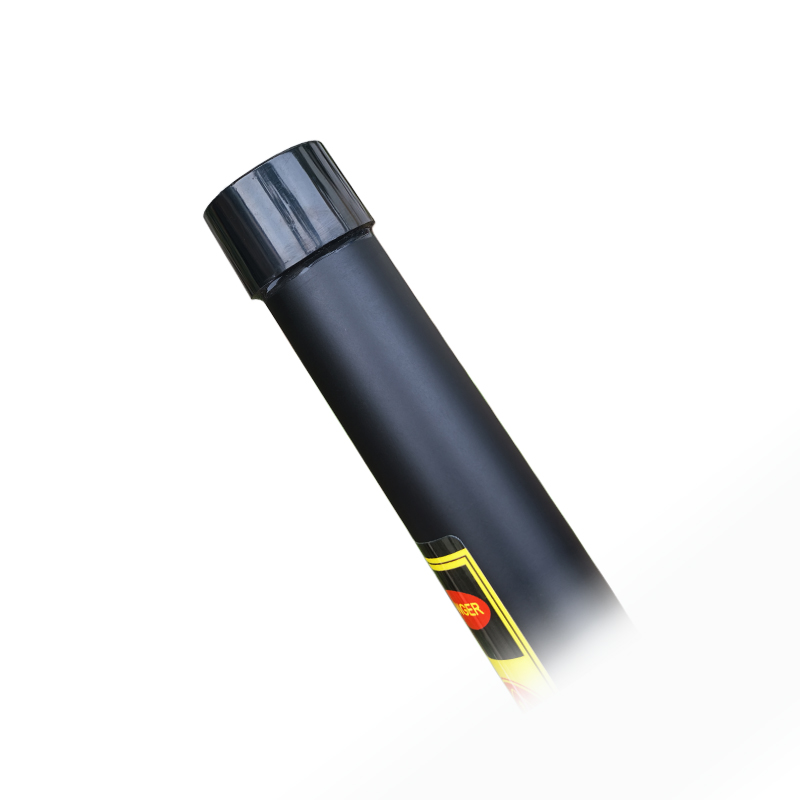

The antenna's sleek,black fiberglass radome offers excellent weather resistance and UV stability, ensuring long-term performance in outdoor settings.

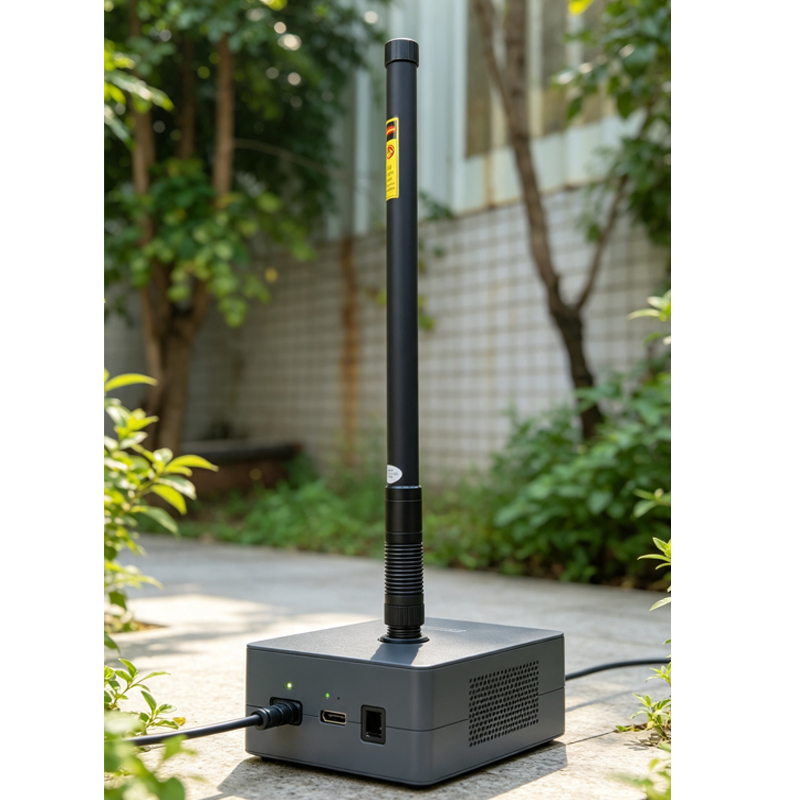

Its omnidirectional radiation pattern provides uniform 360-degree signal coverage,perfect for base stations,repeaters,and vehicle-mounted communication systems.

Get Antenna Price 

Omni-directional Antenna with Embedded Connector for Rugged M2M Applications.jpg

800-960MHz Omni-directional Antenna with Embedded Connector.jpg

800-960MHz Omnidirectional Antenna with Embedded Connector for Rugged M2M Applications.jpg



Specification of 800-960MHz Omnidirectional Antenna with Embedded Connector for Rugged M2M Applications（AC-Q840F05EC）

Electrical
Frequency Range	840-960MHz
Gain	5dBi
Horizontal Beam width	360°
Vertical Beam width	30°
V.S.W.R	≤1.5
Radiation	Omni-Direction
Polarization	Vertical
Lightning Protection	DC Grounded
Maximum Input Power	50W
Impedance	50Ώ

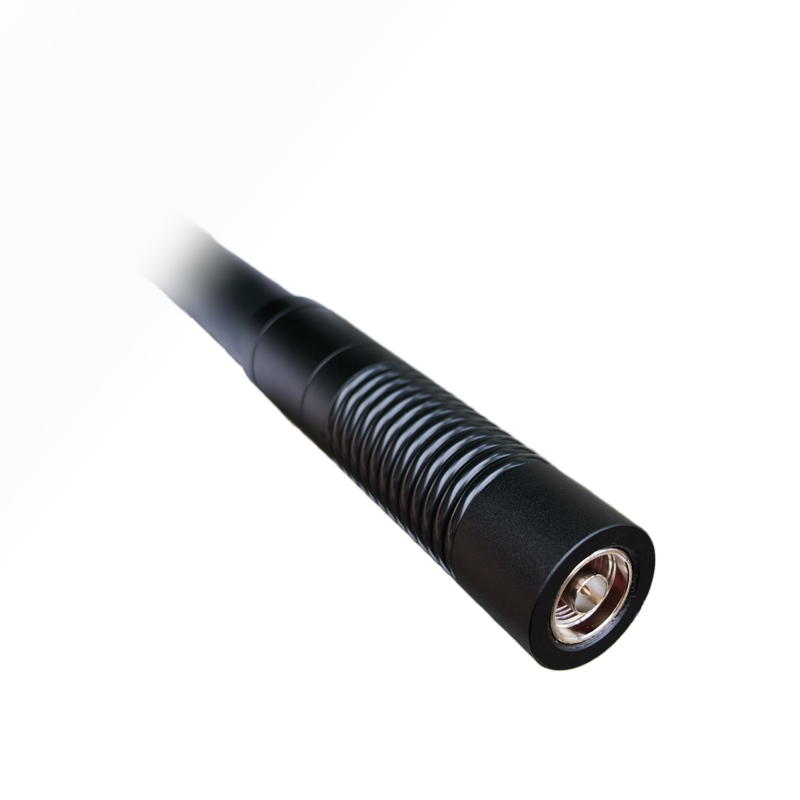

Connector	N Male
Antenna Radome Material	Fiberglass
Mounting way	Pole
Diameter of Installation Pole	Ø30~Ø50mm
Mechanical
Dimensions	Φ30x600mm
Weight	355g
Operating Temperature	-40℃ to+80℃
Rated wind velocity(m/s)	60m/s
RoHS Compliant	YES
