Embedded 5G WIFI Systems,For World-wide Use, Vertical Polarization.
Omni-directional gain across all bands ensures constant reception and transmission.
Cable lengths and connectors are fully customizable.
For good efficiency performance the shortest cable length should however not be less than 100mm.
It is suitable for clients that appreciate highest performance with lower price.
| Electrical | |
| Frequency Range | 5725-5850MHz |
| Gain | 3 dBi |
| V.S.W.R | ≤2.0 |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | RF 1.13 |
| Cable Length | 100mm |
| Antenna Radome Material | FR4 |
| Mechanical | |
| Dimensions | 51x9x0.4mm |
| Weight | 6g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |

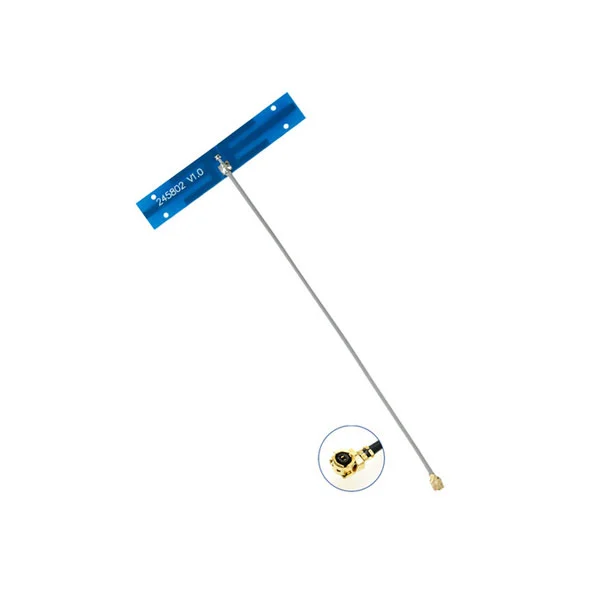

This WLAN PCB piamater antenna with back gum,easy to set up.
Embedded 5G WIFI Systems, For World-wide Use, Vertical Polarization.
The WLAN antenna is installed on wireless devices like WLAN AP to reinforce signal strength.
Asian Creation pays attention to the quality and service. We Keeping progressing, Pursuing integrity, Embracing future. Our teams arelways enthusiastic and welcome to visit us and join hands for a prosperous future.
