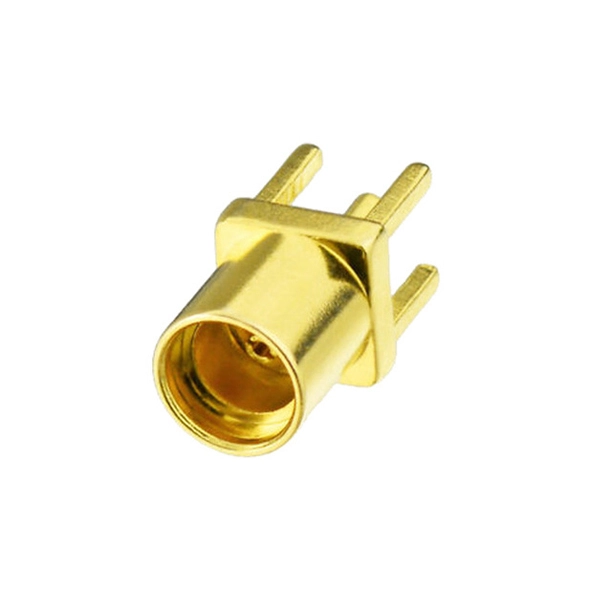

MMCX Straight PCB Connector AC-MMCX FJ-PCB-180

Name: MMCX Straight PCB Connector AC-MMCX FJ-PCB-180
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

MMCX connectors are coaxial RF connectors similar to MCX but smaller.

The connectors have a lock-snap mechanism allowing 360-degree rotation and usually have a 50 Ω impedance.

They offer broadband capability from DC to 6 GHz.

MMCX connectors are most commonly seen on Wi-Fi PCMCIA cards as antenna connectors or as connectors for external GPS antennas on small devices like PDAs or GPS receivers.

They are also used by various brands of in-ear monitors to connect the cable to the individual earpieces.

This allows for the cables to be replaced or swapped.

Get Antenna Price 

Specification of MMCX Straight PCB Connector AC-MMCX FJ-PCB-180

Electrical Specifications
Temp.range	’-55～+165°C
Impedance	50Ω
Frequency Range	DC～6GHz
Working Voltage	170V max
Orientation	straight
Termination Style	PCB
Withstand Voltage	500V rms
Contact resistance
Center Contact	≤ 5 mΩ
Outer Contact	≤ 2.5 mΩ
Insulation resistance	≥ 1000 MΩ
VSWR Straight	≤1.15
Durability(mating)	≥500（cycles）
MATERIAL & PLATING
Shell	Brass	Gold plated
Elastic contact	Beryllium	Gold plated
Inner conductor	Beryllium or tin brass	Gold plated
Insulator	PTFE Crimping suite	Copper alloy
Contact pin	Brass	Gold plated

Features of MMCX Straight PCB Connector AC-MMCX FJ-PCB-180

01

This type MMCX RF connectors of various types are generally used for wireless functions.
02

The Micro-Miniature CoaXial (MMCX) is a miniaturised version of the MCX RF connector and features snap-on coupling.
03

MMCX has the same inner and outer contact interface dimensions as SMB but 45% smaller.
