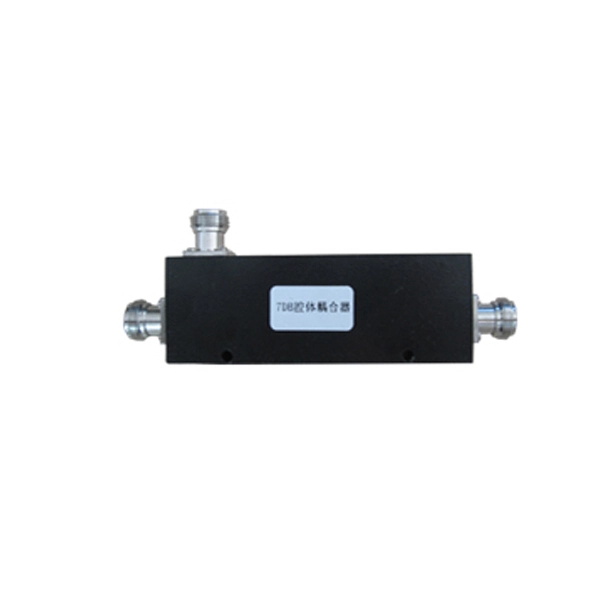

800-2500MHz 7dB RF Directional Couplers N Connector（AC-OHQ-7B）

Name: 800-2500MHz 7dB RF Directional Couplers N Connector（AC-OHQ-7B）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

Widely used in communication, radar, and characteristics of indoor distribution system products.

High directivity,Low insertion loss,Low standing wave ratio,High-power.

The 7dB cavity coupler works in a wide frequency range of 800-2500 MHz and supports most GSM,3G and 4G mobile standards.

Get Antenna Price 

Specification of 800-2500MHz 7dB RF Directional Couplers N Connector（AC-OHQ-7B）

Electrical
Frequency Range	800- 2500MHz
Coupling	7dB
Insertion Loss	≤2.0dB
VSWR (Max)	≤1.4
Isolation (Min)	≥20
Power Handling	50W
Connector Type-Output	N Female
Connector Type -Coupled Port	N Female
Mechanical
Antenna Dimension	120x40x16mm
Weight	200g
Temperature Range	-40ºC to +70ºC
Humidity	5 to 95

Features of 800-2500MHz 7dB RF Directional Couplers N Connector（AC-OHQ-7B）

01

Asian creation RF directional couplers are available in a variety of series connector, such as type N directional coupler.
02

They are manufactured to spec 6 dB, 10 dB, 16 dB, 20 dB, 30 dB and 35 dB coupling values.
03

Asian creation ships all of our products from our facility that is certified to ISO 9001:2015.
