433MHz Wall Mount Antenna With 3M Cable SMA Type (AC-Q433I45B)

Name: 433MHz Wall Mount Antenna With 3M Cable SMA Type (AC-Q433I45B)
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This wall mount ahntenna is designed for 433MHZ as pread spectrum communication system.

After optimizing the design and tuning carefully, it has good VSWR. The small dimension and light structure make it easy to install. It also has good shockproof and anti-aging performance.

With 3 meters, 5meters or 10 meters low loss extender cable will offer the best choose of the installation place.

Get Antenna Price 

433MHz Wall Mount Antenna With 3M Cable SMA Type.jpg

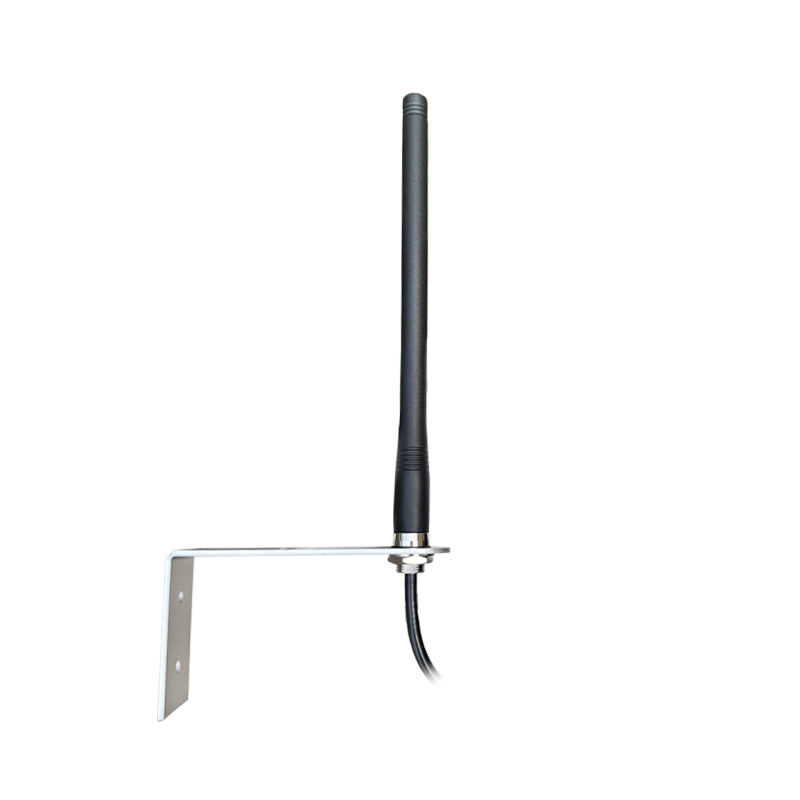

433MHz Wall Mount Antenna With SMA Cable.jpg

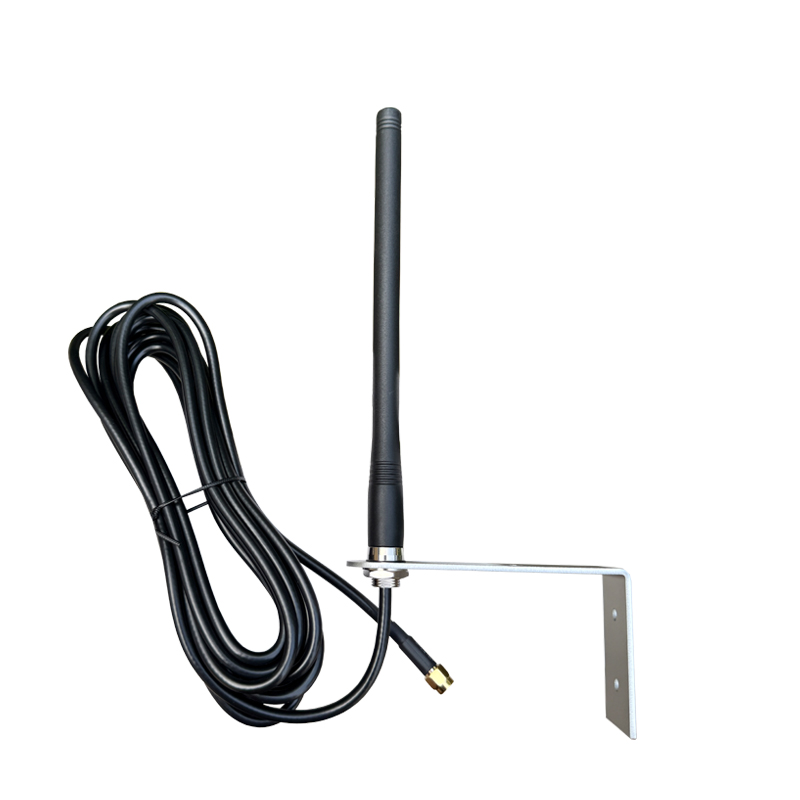

433MHz Wall Mount Antenna With 3M Cable SMA Male.jpg

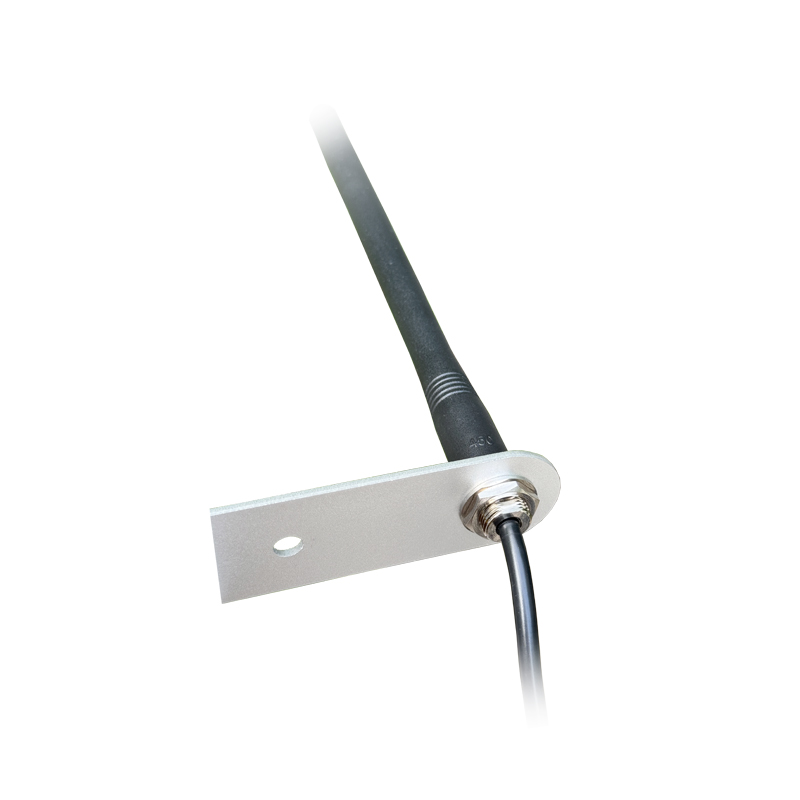

UHF 433MHz Wall Mount Antenna With 3M Cable SMA Type.jpg

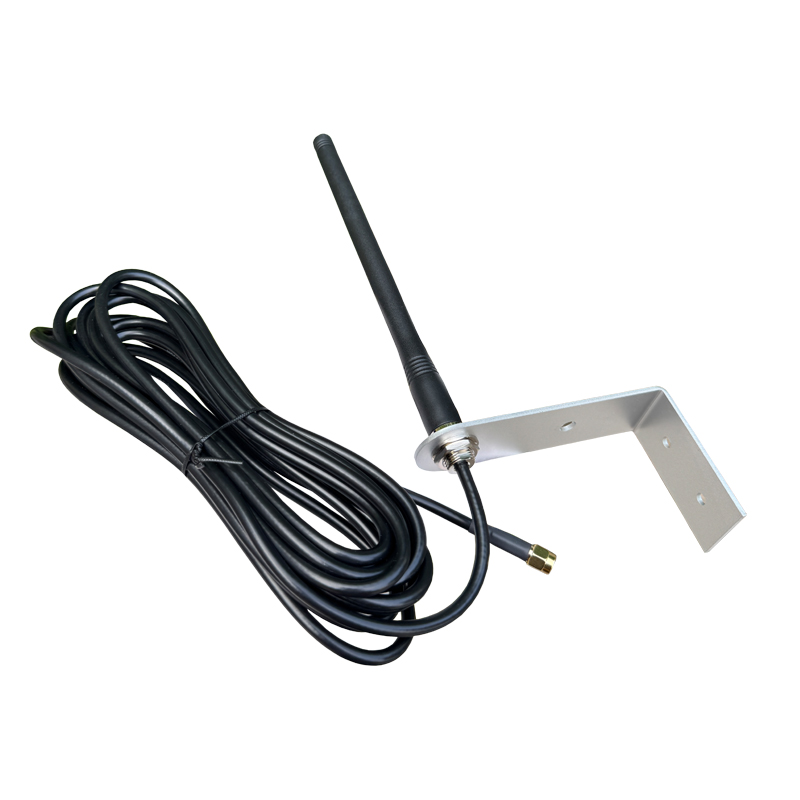

433MHz Wall Mount Antenna With Cable.jpg



Specification of 136-174MHz Wall Mounting Low Cost Compact Antenna (AC-Q155I45B150)

Electrical
Frequency Range	136-174MHz
Center Frequency	155MHz
Gain	3dBi
V.S.W.R	≤1.5(Center frequency only)
Radiation	Omni-Direction
Polarization	Vertical
Maximum Input Power	50W
Impedance	50Ώ
Connector	SMA Male(can be customization )
Cable Type	RG58U
Cable Length	5M
Antenna Radome Material	TPE
Mounting way	Wall Mount
Mechanical
Dimensions	Φ14×152mm
Weight	220g
Operating Temperature	-40℃ to+70℃
RoHS Compliant	YES

Features of 433MHz Wall Mount Antenna With 3M Cable SMA Type (AC-Q433I45B)

01

This is a 433 MHz wall mount omni antenna ideally suited for access applications in the LoRa frequency band.
02

The cable can also be routed out of the back wall of the bracket into the interior of the mounting wall for added security against vandalism.
03

The whip and the internal connection to the bracket is IP65 rated waterproof and the whip can be removed by unscrewing.
