2.3-6.4 GHz 8 port Sector Antenna With N Female（AC-D2364V17X8-65）

Name: 2.3-6.4 GHz 8 port Sector Antenna With N Female（AC-D2364V17X8-65）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

The 2.3-6.4GHz eight port 17dBi high gain antenna launched by Asian Creation Communication is a professional grade device designed specifically for high-performance wireless communication scenarios.

This antenna has an extremely wide frequency coverage range and is perfectly compatible with 5G, Wi Fi 6/6E, and various broadband communication systems,providing sufficient frequency band support for future network upgrades.In terms of performance,the antenna has a peak gain of up to 17dBi,coupled with an 8-port MIMO (Multiple Input Multiple Output) architecture,which can achieve efficient signal transmission and spatial multiplexing,greatly improving data transmission rate and network capacity.

Whether it is the coverage of base stations in densely populated urban areas or the data transmission with high bandwidth requirements, it can provide excellent network experience.

Get Antenna Price 

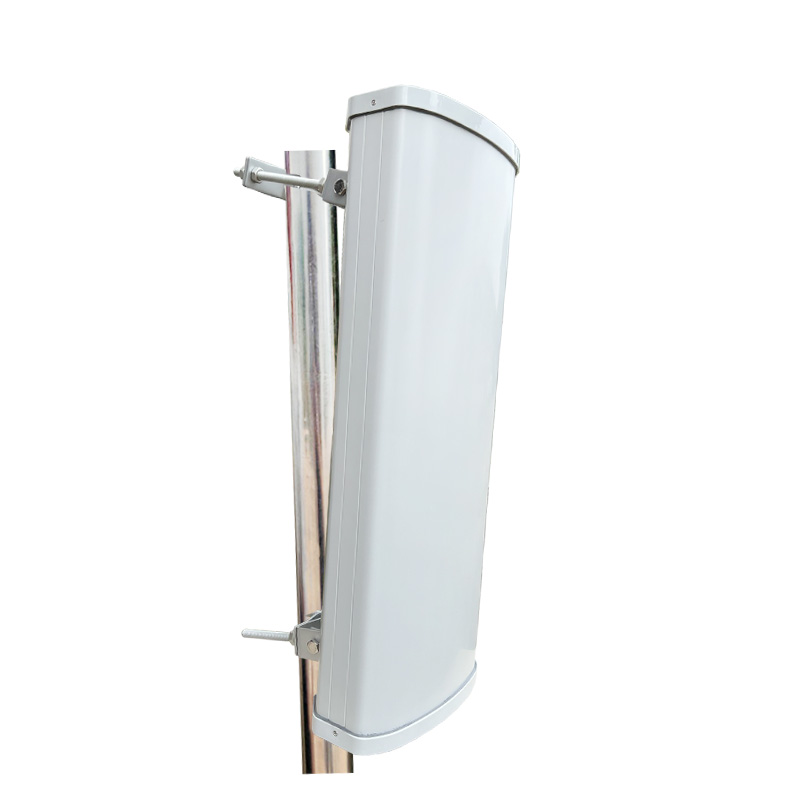

2.3-6.4 GHz 8 port Sector Antenna With N Female Connector.jpg

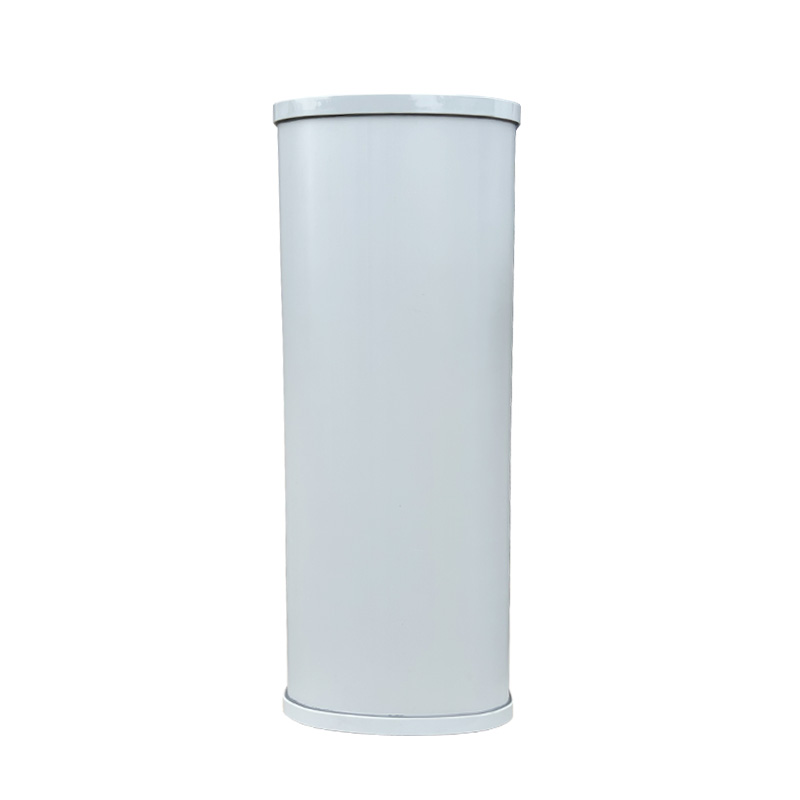

2.3-6.4 GHz Sector Antenna With 8xN Female Connector.jpg

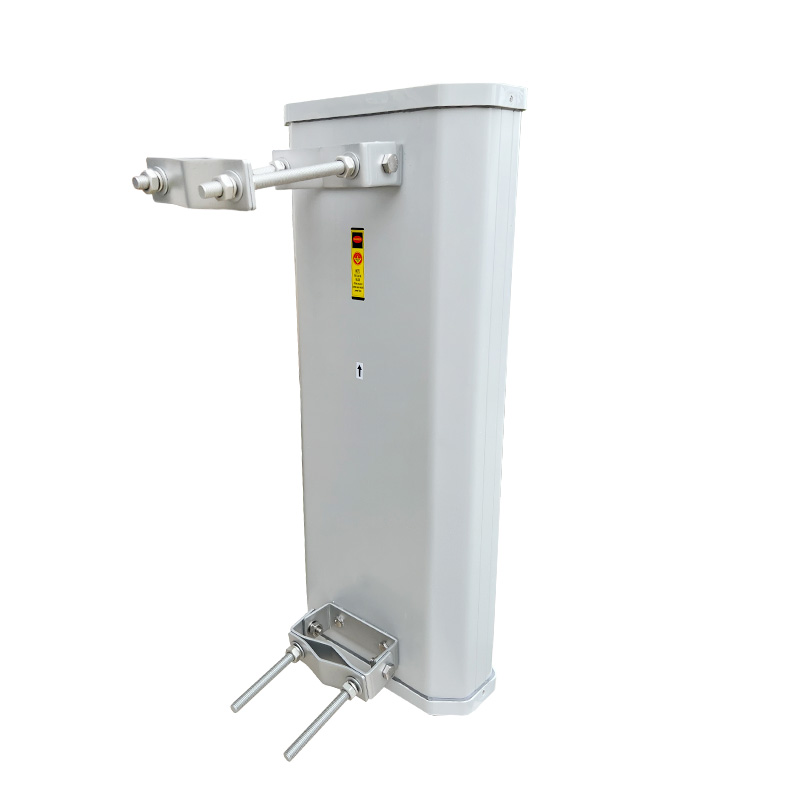

WIFI WLAN 2.3-6.4 GHz 8 port Sector Antenna With 8xN Female Connector.jpg

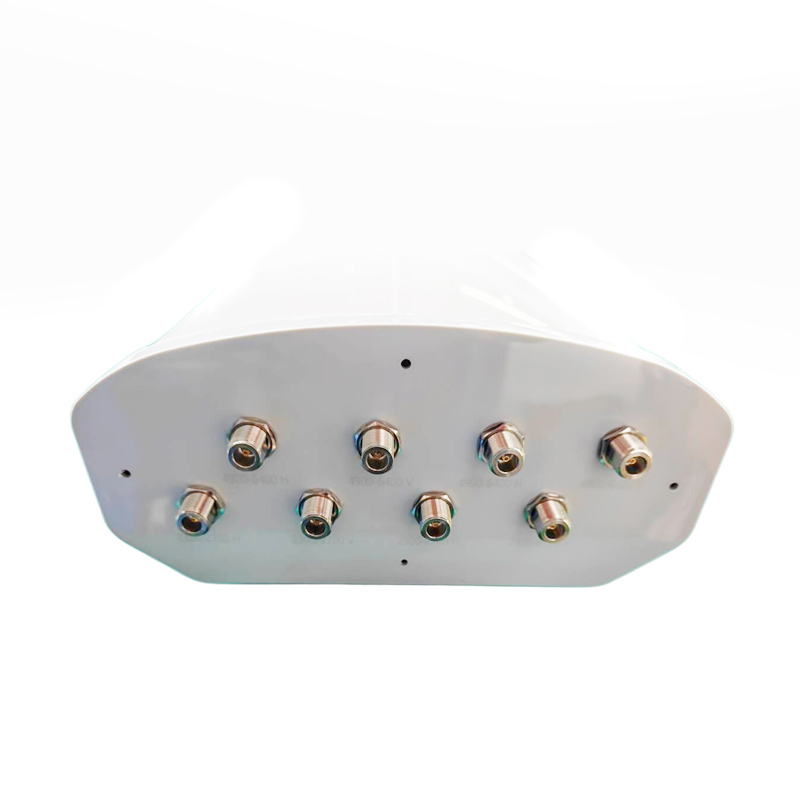

2.3-6.4 GHz 8 port Sector Antenna With 8xN Female Connector.jpg



Specification of 2.3-6.4 GHz 8 port Sector Antenna With N Female（AC-D2364V17X8-65）

Electrical
Frequency Range	4x2300-2700MHz/4x4900-6400MHz
F/B Ratio	＞25dB
Gain	15/17dBi
V.S.W.R	≤1.8,Max 2.0
Radiation	Direction
Horizontal Beam width	65°
Vertical Beam width	15°
Polarization	Vertical and Horizontal
Lightning Protection	DC Grounded
Maximum Input Power	100W
Impedance	50Ώ
Connector	8xN Female
Antenna Radome Material	PVC
Mounting way	Pole Mount
Diameter of Installation Pole	Ø30-Ø50mm
Mechanical
Dimensions	950x287x140mm
Weight	10KG
Operating Temperature	-40℃ to+70℃
Rated Wind Velocity	60m/s
RoHS Compliant	YES

Features of 2.3-6.4 GHz 8 port Sector Antenna With N Female（AC-D2364V17X8-65）

01

Provides a future-ready antenna solution with flexibility to reassign antenna, for example GSM 1800 service to 2.6GHz LTE
02

Employs state-of-the-art ultra wideband technology providing excellent RF performance in all bands
03

Quad band antenna, dual polarisation, 8 connectors
