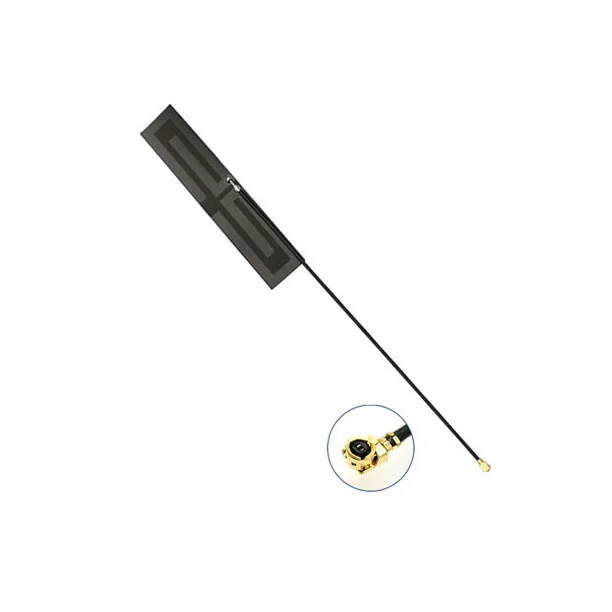

4G LTE 698-2700MHz FPC Antenna With IPEX(U.FL) Connector AC-Q7027-N3208

Name: 4G LTE 698-2700MHz FPC Antenna With IPEX(U.FL) Connector AC-Q7027-N3208
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

That 50-ohm impedance wideband antenna has been designed to cover all working frequencies in the 698-2700MHz spectrum, including all Cellular, Wi-Fi, ISM and GNSS bands.

Its use in a device improves substantially the radiated power and sensitivity and enables the highest throughput rates of today's broadband devices.

Ground-plane independent, with a cable and connector for easy installation is designed to be mounted directly onto a plastic or glass enclosure/cover.

Connection is made to the radio via a 100 mm long, 1.13 mm coaxial cable terminated in an MHF1/U.FL compatible plug connector.

Adhesive backing permanently adheres to nonmetal enclosures using 3M adhesive.

Get Antenna Price 

4g lte 698 2700mhz fpc antenna with ipexu fl connector ac q7027 n3208

Specification of 4G LTE 698-2700MHz FPC Antenna With IPEX(U.FL) Connector

Electrical
Frequency Range	698-960/1710-2700MHz
Gain	3dBi
V.S.W.R	≤2.0
Polarization	Vertical
Maximum Input Power	5W
Impedance	50Ώ
Connector	IPEX
Cable Type	1.13
Cable Length	10cm
Antenna Radome Material	FPC
Mechanical
Dimensions	32x8x0.1mm
Weight	<5g
Operating Temperature	-40℃ to+70℃
RoHS Compliant	YES

4G LTE 698-2700MHz FPC Antenna With IPEX(U.FL) Connector Advantages

01

4G LTE antenna provides a wide enough range for a number of applications including BLE & LoRa/RF.
02

LTE indoor embedded Omni-directional antenna.
03

High efficiency and quick integration with IPEX compatible connector mounting.

Typical Applications of 4G PCB Antennas

Our 4G PCB antenna solutions are widely used in:

IoT devices and IoT gateways
LTE routers and CPE equipment
Asset tracking and GPS/LTE tracking devices
Smart meters and smart city terminals
Industrial monitoring and control systems
Portable LTE terminals and handheld devices

These application-focused designs ensure reliable connectivity in both indoor and outdoor deployment scenarios.
