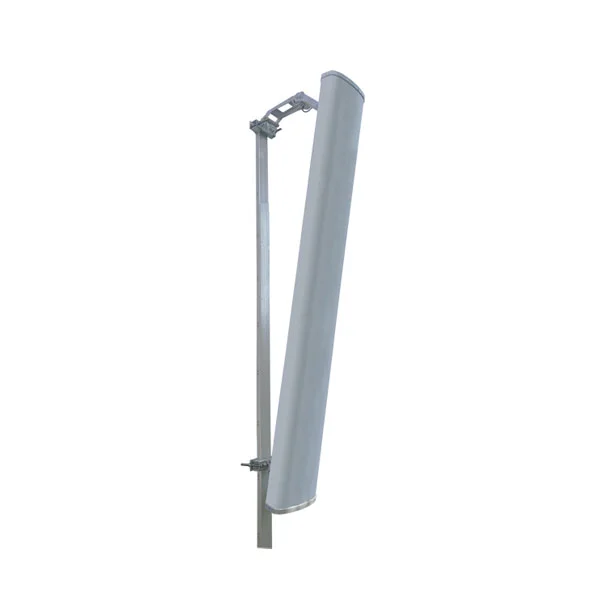

Standard models of the AC-D433V14-65 are gray in color with a textured finish.PVC radome finish, color and texture can be provided to complement and blend within any environment.
A variety of standard and custom mounting configurations are available.
The mounting configurations can provide fixed or variable pointing angle. The RF input connector and/or cable combination may be specified by the customer.
| Electrical | |
| Frequency Range | 433MHz |
| Band width | ±3MHz |
| Gain | 14dBi |
| F/B Ratio | ≥20dB |
| Horizontal Beam width | 65° |
| Vertical Beam width | 15° |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Lightning Protection | DC Grounded |
| Polarization | Vertical |
| Maximum Input Power | 200W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | PVC |
| Mounting Way | Pole Mount |
| Diameter of Installation Pole | Φ30-50mm |
| Mechanical | |
| Antenna Dimension | 2030x286x130mm |
| Weight | 10.5KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | YES |
The enclosure of the Sector Antenna is made of PVC plastic and aluminium alloy bracket assembly.
It is weatherproof and can be used in- and outdoor and designed for mast/pole installation.
Usually you can use several sector antennas to get a full 360 ° coverage.For example Six of 65°these antennas mounted to a tower provides complete 360° coverage
